This RF filter calculator is used for microstrip filter calculations. It covers low pass and bandpass rf filter calculators used in microstrip designs. Both pi filter and T filter section filter topologies are covered.

Microstrip Low pass filter calculator

Following is a simple LC based RF lowpass filter calculator of order N equal to 3.

Cutoff Frequency, MHz (input1) :

Characteristic Impedance, Ohm (input2) :


Inductance(L) in Henries (Output1):

Capacitance (C) in farads (Output2):

Example of RF Filter Calculator of lowpass type:
INPUTS : Fc =1182.5 MHz, Z0 = 50 Ohm
OUTPUTS: L = 1.34e-8 Henries, C = 5.38e-12 farads

Microstrip low pass filter Formula

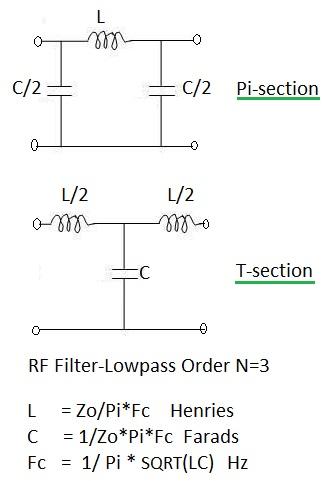

Following are the equations used in RF lowpass filter calculator of order N equal to 3. Figure-1 depicts lowpass pi filter and T filter section topologies. This simple RF filter calculator made of L and C components is very useful.


RF Filter Calculator formula, low pass filter

Microstrip Bandpass filter calculator

Following is a simple LC based RF bandpass filter calculator of order N equal to 3.

BPF Start frequency, MHz (input1) :

BPF End frequency, MHz (input2) :

Characteristic Impedance, Ohm(input3) :


Inductance(L1) in Henries (Output1):

Inductance(L2) in Henries (Output2):

Capacitance(C1) in Farads (Output3):

Capacitance(C2) in Farads (Output4):

Example of Microstrip Filter Calculator of bandpass type:
INPUTS : f1 = 1024.5 MHz, f2 = 1060.5 MHz, Z01 = 50 Ohm
OUTPUTS: L1 = 4.42e-7 Henries , L2 = 1.319e-10 Henries, C1 = 5.276e-14 farads , C2 = 1.76e-10 Farads

Microstrip Bandpass filter formula

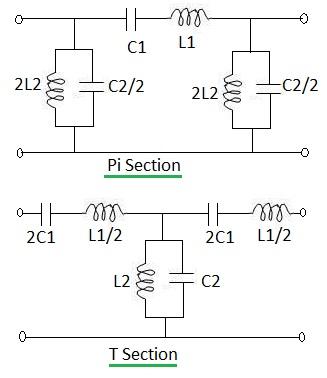

Figure-2 depicts bandpass pi filter and T filter section topologies. Following are the equations for above mentioned RF bandpass filter topologies.


Microstrip Filter Calculator formula, bandpass filter

L1 = [ Z0/ (Pi*(f2-f1)) ] ..... Henries

L2 = [ Z0*(f2-f1) / (4*Pi*f2*f1) ] ..... Henries

C1 = [ (f2-f1) / (4*Pi*f2*f1*Z0) ] ..... Farads

C2 = [ 1 / (Pi*Z0*(f2-f1) ] ..... Farads

In order to understand concepts of Microstrip filter calculator one can also refer step by step RF filter design. This design article covers microstrip based RF/Microwave Low Pass Filter design example along with Kudora's identities, Richard transformation and filter coefficients table for Chebysev LPF. Click to visit RF Filter Design Example➤
