RF Harmonics Calculator | formula,equation for RF Harmonics

This page covers RF Harmonics calculator. The formula/equation for this RF Harmonics calculator is also mentioned. The frequencies which are integer multiple of input frequencies are known as harmonic frequencies.

Frequency input, MHz (input1) :

2nd Harmonic Frequency, MHz (Output) :
3rd Harmonic Frequency, MHz (Output) :
4th Harmonic Frequency, MHz (Output) :
5th Harmonic Frequency, MHz (Output) :
6th Harmonic Frequency, MHz (Output) :
7th Harmonic Frequency, MHz (Output) :
8th Harmonic Frequency, MHz (Output) :
9th Harmonic Frequency, MHz (Output) :
10th Harmonic Frequency, MHz (Output) :

EXAMPLE of RF Harmonics calculator:
INPUTS: Finput = 100 MHz
OUTPUT: F(harmonics) output = 200MHz(2nd harmonic), 300MHz, .......1000MHz (10th harmonic).

RF Harmonics Calculator Formula or Equation

Following equation or formula is used for RF Harmonics Calculator.

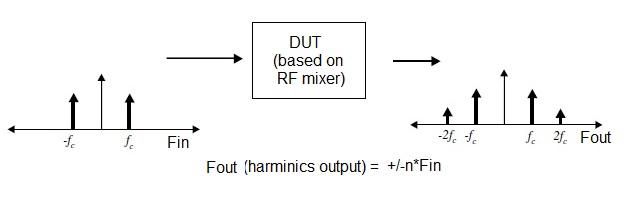

RF Harmonics Formula

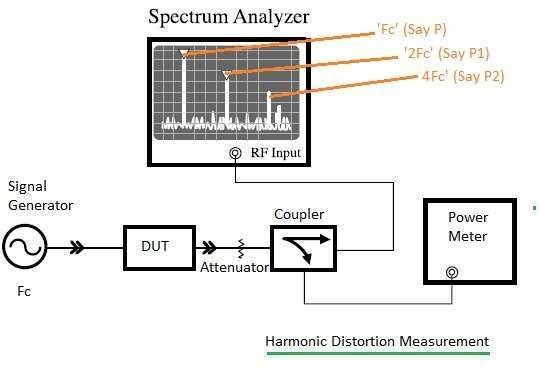

RF Harmonic Measurement setup

RF harmonic distortion measurement

Refer RF Harmonic Distortion Measurement>>.
