Rail Antenna for trains
The rail antennas are used for indoor and outdoor applications. These antennas are designed as per compliance specifications outlined in EN50155 standard for mounting on trains and vehicles. This railway stanadrd specified various approval tests for rail antennas as well as other electronic equipments required on a train. The tests include performance over wide temperature range (-40 oC to +85 oC); EMC test, shock vibration and bump test etc.

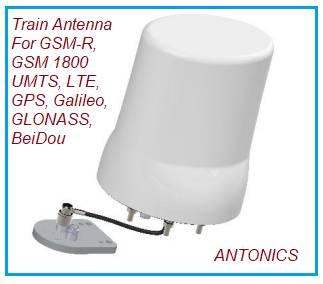

Image Courtesy: ANTONICS - ICP GmbH
Indoor antennas are designed for WLAN frequency bands (2.4 GHz and 5.8 GHz) to provide wifi connectivity with smart devices. These indoor antennas also support various cellular bands viz. 5G, LTE 700/800, GSM-R, GSM 900/1800, UMTS (1885 to 2170 MHz) etc. Refer article on WiFi on trains covering various network architectures to use internet on trains at metro stations and rail tunnels.
The generic specifications of indoor rail antennas used for wifi applications are as follows.
• Frequency band : 2.4 or 5.8 GHz
• Polarization : Vertical
• Pattern : Omni-directional
• Gain : 9 dBi (For 2.4 GHz) or 10.1 dBi (For 5.8 GHz)
• Power/DC voltage : 50 W
• Efficiency : 97%
• VSWR <= 1.5 typ.
• Antenna type : Patch
• Impedance : 50 Ohm
• RF connector : N (Female)
The generic specifications of outdoor rail antennas used for cellular applications are as follows.
• Spectrum : 2m-band , GSM-R, GSM-900/1800, UMTS, LTE, GPS etc.
• Frequency : 146-156 MHz, 694-960/1710-2690 MHz, 1560-1606 MHz
• Polarization : Vertical/Horizontal, right-hand circular
• Pattern : Omni-directional
• Gain : 4 dBi (2m-band) , 7.1dBi (LTE-700), 9.2 dBi(GSM-900), 9.3 (UMTS) 5.1 dBi (GPS, GLONASS etc.)
• Antenna type : Ring resonator or high gain patch antenna
• VSWR <= 1.8
Lists of Rail Antenna vendors
Following table mentions Rail Antenna vendors or manufacturers with their features and part numbers.
|Rail Antenna vendors or manufacturers||Description|
|ANTONICS - ICP GmbH
Phone: +49 3304 - 25 42 04
Website : www.antonics.com
|Model : OmPlecs®-TOP 200 AMR 150 LG (Cellular antenna for outdoor use)
Model : OmPlecs®-TOP 200 AMR MF-05-3 (WLAN antenna for Indoor Use)
Website : www.te.com
|MIMO antennas for onboard rail applications for 2G, 3G, 4G, 5G, LTE, WiFi, GPS/GNSS technologies. They are compliant to EN50155 and EN45545 specifications.|
Email : email@example.com
Website : www.netmodule.com
|There are various models available. Visit company website for detailed technical features.|
Website : www.hubersuhner.com
|The company manufactures directional and omni-directional antennas for indoor and outdoor applications.|
| M2M Connectivity, a Sierra Wireless Company
Email : firstname.lastname@example.org
Website : m2mconnectivity.com.au
|Maxwave rooftop antennas are used for LTE, WiFi and WIMAX MIMO applications. It supports 4x4 or 8x8 MIMO system.|
