Time Domain Vs Frequency Domain : Key Differences Explained

In signal processing and communication systems, understanding the time domain and frequency domain is crucial for analyzing signals effectively. These two domains represent signals differently: the time domain focuses on how a signal varies over time, while the frequency domain highlights the signal's frequency components. By exploring their definitions, applications, and differences, you can gain a deeper insight into how these approaches contribute to various engineering and scientific fields.

There are basically mere representations of various waveforms and parameters in time and frequency domains. These help solve verious complex system related issues such as jitter, phase noise, BER etc.

Time Domain

It is the domain in which all the signals are represented. Time domain signal can be tested or verified with the use of oscilloscope. In time domain signals are represented by amplitude on Y axis and time on X axis.

Key Points about the Time Domain are as follows :
• Visual Representation: The signal is displayed as a waveform showing changes over time.
• Applications: It is used in analyzing transient signals, understanding waveforms, and studying time based signal behavior, such as in oscilloscopes.
• Mathematical Description: Signals are often represented by time based functions like f(t).
• Example: The waveform of a heartbeat (ECG signal) recorded over time is a classic time domain signal.

The time domain is intuitive for understanding how signals behave moment by moment, especially for signals that are short in duration or time specific.

Frequency Domain

It is useful to do more deeper analysis of the time domain signal. Frequency domain helps study frequency contents of the discrete time domain signals as well as continuous time domain signal. The frequency domain signal can be analyzed with the use of spectrum analyzer.

This domain represents a signal by decomposing it into sinusoidal components of varying frequencies using techniques like the Fourier Transform. In frequency domain signals are represenred by power(amplitude2) on Y axis and frequency on X axis.

Key Points about the Frequency Domain:
• Visual Representation: The signal is displayed as a spectrum showing amplitude or power versus frequency.
• Applications: It is used in filtering, modulation, and analyzing periodic signals or systems, such as in spectrum analyzers.
• Mathematical Description: Signals are represented as functions of frequency, such as F(f).
• Example: The frequency spectrum of an audio signal, showing bass, treble, and midrange components, is a frequency-domain representation.

The frequency domain provides valuable insights into a signal’s spectral characteristics, making it crucial for applications where frequency-specific information is key, such as telecommunications and audio processing.

Representation of signals

Time domain signal can be converted to Frequency domain signal with the use of Discrete Fourier Transform or Fast Fourier Transform(FFT).

time domain vs frequency domain of waveforms

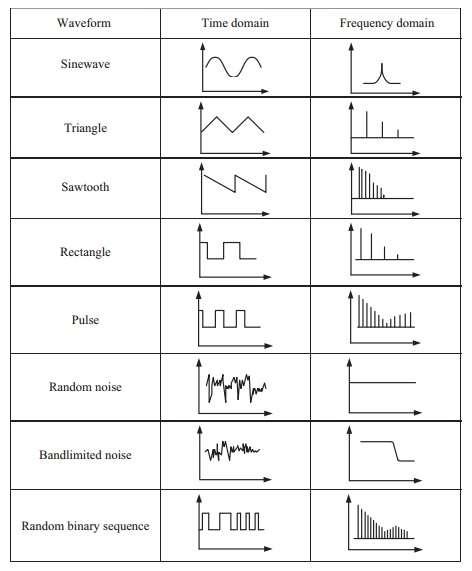

Figure-1 depicts representation of various waveforms in time domain and frequency domain. The waveforms include sinewave, triangle, sawtooth, rectangle, pulse etc. As shown sine wave will have single peak at frequency of the sine wave. As we know frequency is the inverse of time period of the sinewave.

Time domain vector vs frequency domain vector conversion

Following two methods are very popular for said conversion:
IFFT ➨ Converts Frequency Domain Vector to Time Domain Vector
DFT or FFT ➨ Converts Time Domain Vector to Frequency Domain Vector.
Refer following links on FFT, DFT:
FFT DFT basics with equation➤
16 point FFT implementation basics and MATLAB code➤

There are various measurements performed in time domain and frequency domain to analyze complex baseband signals of various wireless standards such as WLAN, WiMAX, GSM, LTE etc.

Few of the time domain measurements are instantaneous power spectrum, CCDF, eye diagram and more. Few of the frequency domain measurements are power spectrum (frequency vs power diagram), channel frequency response, I/Q constellation digram, EVM etc.

Difference Between Time Domain and Frequency Domain

Following table highlights the distinctions between time and frequency domains, making it easier to understand their unique roles in signal processing.

Aspect Time domain Frequency domain
Definition Represents a signal as it changes over time. Represents a signal in terms of its frequency components.
Visualization Signals are typically plotted as amplitude vs. time. Signals are plotted as amplitude or magnitude vs. frequency.
Focus Examines how a signal behaves or varies with time. Focuses on the spectral content of the signal, such as its frequencies.
Applications Used in time based signal analysis, such as transient behavior and waveforms. Used in frequency analysis, such as filtering, modulation, and spectral design.
Mathematical Tools Utilizes differential equations and time domain analysis techniques. Uses Fourier Transform, Laplace Transform, or spectral analysis techniques.
Advantages Simple and intuitive for analyzing short-duration signals. Reveals frequency-specific information and periodic behavior of signals.
Disadvantages Difficult to interpret frequency-specific details. May lose direct time related information of the signal.
Signal Representation Represented by its amplitude as a function of time. Represented by its amplitude and phase as a function of frequency.
Example Use Case Examining an audio waveform over time. Analyzing the frequency spectrum of audio signals for equalization.

Conclusion

The time domain and frequency domain are complementary approaches to analyzing signals. While the time domain emphasizes signal behavior over time, the frequency domain uncovers the underlying frequency components. Understanding their differences and applications helps in selecting the right approach for specific tasks in signal processing, communication, and engineering projects.
