Narrowband vs Broadband : Understanding the Key Differences, Applications and Use Cases

When discussing communication systems, one of the essential distinctions to understand is the difference between narrowband and broadband. These terms refer to the range of frequencies used for transmitting data, and they significantly impact the performance and application of a communication system. In this page, we will explore the definitions, characteristics, applications, advantages and disadvantages of both of these terms.

What is Narrowband ?

The communication channel that transmits data over a smaller bandwidth is referred as narrowband. Typically, it uses a bandwidth of less than 25 kHz and is characterized by low data transmission rates. Narrowband communication is primarily used for applications that require a limited amount of data to be sent over long distances with minimal interference.

Key Characteristics of Narrowband

• Low Bandwidth Usage: As the name suggests, narrowband uses a smaller portion of the frequency spectrum, typically less than 25 kHz.
• Lower Data Rates: Due to its limited bandwidth, narrowband communication supports lower data rates, making it suitable for text, voice, and low-quality video transmissions.
• Long-Distance Communication: The narrow bandwidth helps reduce noise and interference, allowing signals to travel over long distances effectively.
• Low Power Consumption: Devices operating in narrowband are generally energy-efficient, making them ideal for battery-operated devices.
• Better Penetration: The low-frequency range allows narrowband signals to penetrate through obstacles like buildings and walls more effectively.

Applications of Narrowband

1. Public safety communication (e.g., TETRA and P25 radio systems)
2. Remote monitoring and control systems
3. Narrowband Internet of Things (NB-IoT)
4. Long-range telemetry and SCADA (Supervisory Control and Data Acquisition)

What is Broadband ?

The communication channel that transmits data over a wider range of frequencies is referred as broadband. Typically, it uses bandwidth greater than 25 kHz and can transmit large amounts of data at high speeds. Broadband communication is widely used for high speed internet connections, multimedia transmissions, and applications that require rapid data transfer.

Key Characteristics of Broadband

• High Bandwidth Usage: Broadband uses a large portion of the frequency spectrum, typically starting from 1 MHz and above.
• Higher Data Rates: Due to the wide bandwidth, broadband communication supports high data transmission rates, enabling real-time video, multimedia streaming, and large data transfers.
• Limited Range: Because of higher frequencies and wider bandwidths, broadband signals are often limited in range and are more susceptible to interference.
• Higher Power Consumption: Broadband devices typically consume more power due to the higher data rates and transmission requirements.
• Multiplexing Capability: Broadband supports various multiplexing techniques, allowing multiple channels to share the same frequency range.

Applications of Broadband

1. High-speed internet services (DSL, cable, fiber optics)
2. Multimedia streaming (video-on-demand, IPTV)
3. Video conferencing and telepresence systems
4. Modern wireless communication systems (Wi-Fi, 4G LTE, 5G)

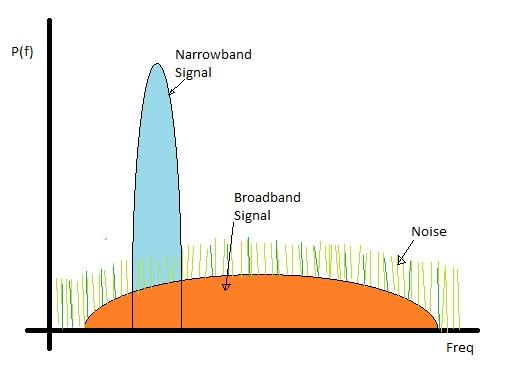

Difference Between Narrowband and Broadband

The following table summarizes comparison between narrowband vs broadband communication with respect to various features.

Conclusion

Narrowband and broadband communication systems serve distinct purposes depending on the application requirements. Narrowband is ideal for scenarios where low data rates and long-distance communication are crucial, while broadband is suitable for high-speed data transfer and multimedia-rich applications. Understanding these differences helps in selecting the right technology for a particular communication need.
