Detailed Overview of RF Filter Types : LPF, HPF, BPF and BSF

RF (Radio Frequency) filters, such as LPF, HPF, BPF, and BSF, are essential components in managing frequency signals in communication and electronic systems. These filters are specifically designed to pass or block certain frequency ranges, enabling clear signal transmission and reception. In this guide, we will explain the different RF filter types, their functionality and their key applications in various RF systems.

There are four main types of filters such as lowpass filter (LPF), Highpass filter (HPF), Bandpass filter (BPF) and Bandstop filter (BSF). All these Filters are categorized into active filter and passive filter. They are also categorized into analog filters and digital filters.

RF Filter definition:
The electronic circuit which changes amplitude and phase angle of electrical signal based on frequency is known as frequency filter. The filter which operates on radio frequency is known as RF filter.

Passive Filter Vs Active filter

Based on type of components used in the design of filter there are two types viz. passive filter and active filter.
Passive Filter:
It uses passive components such as coils or inductors (L), capacitors (C) and resistors (R) in the construction of filter. Hence it is known as passive filter.
Active Filter:
It uses active components such as operational amplifier in addition to R and C in the construction of the filter. Hence it is known as active filter.

Analog filter Vs Digital filter

Analog Filter:
The analog filters are made of discrete components.
Digital Filter: The digital filters are usually developed in programming languages which are ported on ASIC, FPGA or DSP or other processors. They perform operation as per algorithm written.

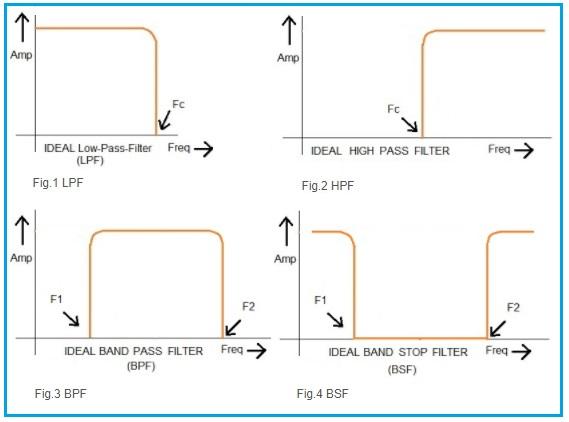

Frequency Response of RF Filter types

LPF : Low Pass Filter

A LPF permits all the lower frequencies of a signal upto desired cutoff frequency to pass through with little or no attenuation. All the frequencies above the cutoff frequency are attenuated.

Applications:
• Noise reduction in audio systems.
• Filtering harmonics in RF systems.
• Smoothing signals in power supplies.
Example Use Case: In a transmitter, an LPF removes high-frequency noise before the signal is transmitted.

HPF : High Pass Filter

A HPF permits all the higher frequencies of a signal from defined cutoff frequency with little or no attenuation. All the frequencies below the cutoff frequency are attenuated.

Applications:
• Blocking unwanted low-frequency signals, such as DC components.
• Enhancing high-frequency details in audio systems.
• Use in antennas to filter out irrelevant frequencies.
Example Use Case: In a receiver, an HPF filters out low-frequency noise like power-line interference.

BPF : Band Pass Filter

A BPF permits signals within specific frequency bands to pass through. All the signal frequencies below and above the passband are attenuated or blocked.

Applications:
• Wireless communication systems for channel selection.
• Radar and satellite communication.
• Spectral analysis in signal processing.
Example Use Case: A BPF is used in mobile phones to isolate the desired communication band.

BSF : Band Stop Filter

The BSF suppress specific frequency range and permits all other frequencies which are in lower and higher range.

Applications:
• Removing interference from specific frequency bands.
• Eliminating hum in audio signals caused by power line interference.
• Signal conditioning in RF circuits.
Example Use Case: A BSF is commonly used to block specific frequencies in TV transmitters to prevent interference.

➨Refer LPF vs HPF vs BPF vs BSF>> and All Pass Filter basics and types>> for more information.

Conclusion

RF filters like LPF, HPF, BPF, and BSF are indispensable for ensuring efficient signal processing in RF systems. Each filter type serves a unique purpose, from isolating desired frequencies to eliminating unwanted ones. By understanding these RF filter types, engineers can effectively design and optimize systems for better performance in communication, broadcasting, and beyond.
