FPGA vs Microcontroller

FPGA (Field-Programmable Gate Array) and microcontrollers are both types of integrated circuits (ICs) used in electronic systems, but they serve different purposes and have distinct characteristics. Let's explore the key difference between FPGA and microcontroller.

What is Microcontroller

A microcontroller is a compact integrated circuit that consists of a processor core, memory, and various peripherals, all on a single chip. Microcontrollers are designed for embedded applications and are commonly used in electronic systems to control devices and processes. They are well-suited for tasks that require processing and control functions in a single chip. Microcontrollers find applications in a wide range of fields, including consumer electronics, automotive systems, industrial automation, and more. They are typically programmed to perform specific tasks using high-level languages such as C or assembly language.

Microcontroller Examples :
Arduino Uno Microcontroller , PIC Microcontroller (PIC16F877A), AVR Microcontroller (Atmega328P ), ARM Cortex-M Microcontroller ( STM32F4 series) etc.

Microcontroller

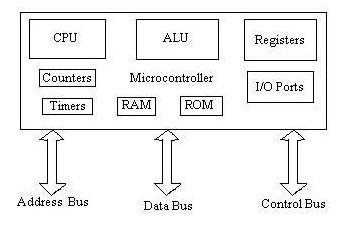

The figure-1 depicts Microcontroller Architecture.
Refer 8051 Microcontroller Architecture➤.

What is FPGA

FPGA stands for Field-Programmable Gate Array. It is a type of programmable logic device that contains an array of programmable logic blocks, interconnects, and input/output (I/O) blocks. FPGAs are reconfigurable hardware devices, allowing users to define and implement custom digital circuits and logic functions. This flexibility makes FPGAs suitable for a variety of applications, including prototyping, signal processing, communications, and hardware acceleration.

FPGA Examples :
Xilinx UltraScale+ FPGA, Intel Cyclone V FPGA, Lattice ECP5 FPGA, Microsemi SmartFusion2 FPGA, Aldec TySOM-3-ZU7EV.

fpga

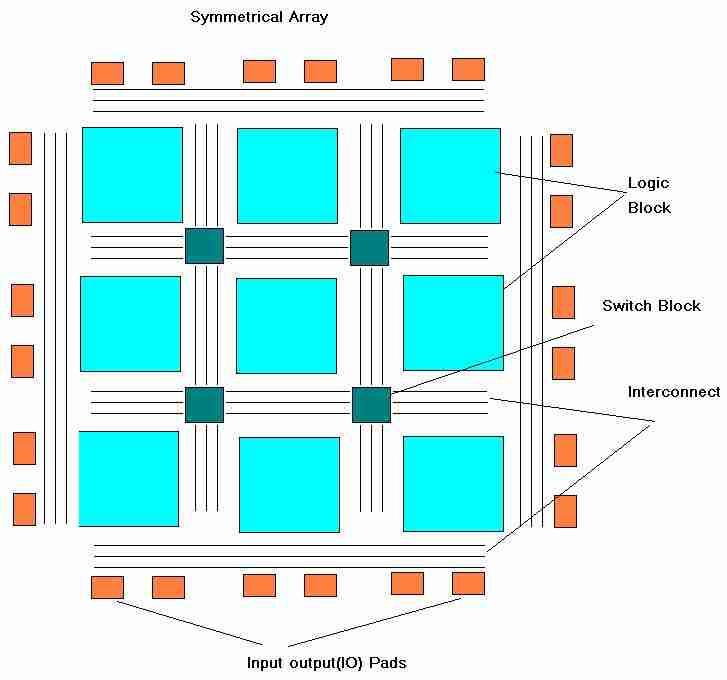

The figure-2 depicts FPGA Architecture.
Refer FPGA Architecture and its building blocks >> and FPGA types >> for more information.

Difference between FPGA and Microcontroller

Following table compares FPGA vs Microcontroller with respect to various parameters.


Features Microcontroller FPGA
Functionality Fixed functionality for embedded applications and general purpose computing tasks. Reconfigurable hardware for custom digital circuits and logic functions.
Flexibility Less flexible, functionality is fixed during manufacturing. Highly flexible, hardware can be reconfigured for different applications
Software Programming Language used C, C++, C# etc. VHDL, Verilog
Complexity Generally less complex Designs can be complex
Ease of use More accessible to wider range of developers; easier learning curve. Requires expertise in digital designs and HDLs; steeper learning curve.
Parallel processing Limited, suitable for serial execution of instruction Excellent at parallel processing, enables multiple operations simultaneously.
Cost Generally more cost effective Can be more expensive
Applications Commonly used in embedded systems, control systems, various consumer electronics Suitable for high performance applications, prototyping, custom logic circuits.
Example ICs PIC Microcontroller PIC16F877A Xilinx UltraScale+ FPGA

Conclusion : In summary, FPGAs and microcontrollers serve different purposes, with FPGAs providing flexibility and high performance for specific applications, while microcontrollers offer a more straightforward and cost-effective solution for a wide range of embedded systems. The choice between them depends on the requirements of the specific application.
