What is Hot wire mass air flow sensor (MAF Sensor) ?

A hot wire mass air flow (MAF) sensor is a type of sensor used in many modern vehicles to measure the mass of air entering the engine. It plays a crucial role in engine management and optimization by providing data to the engine control unit (ECU) to adjust the air-fuel mixture for efficient combustion.

The primary function of a MAF sensor is to measure the volume and density of the incoming air. This information is essential for the ECU to determine how much fuel to inject into the combustion chambers to maintain the correct air-fuel ratio (usually around 14.7:1 for gasoline engines).

As air density depends on temperature, altitude as well as application of forced induction, MAF sensors are more useful and more appropriate to determine quantity of air intake in each of the cylinder compare to volumetric flow sensors. Mass Airflow sensor and Oxygen Sensor are used together to control air/fuel ratio accurately in the engine.

Mass Air flow (MAF) sensor construction

MAF sensor position

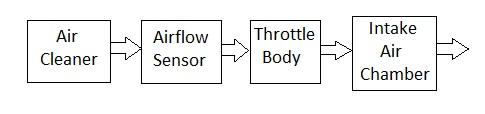

The figure-1 block diagram shows position of Mass Air Flow Sensor. As shown it is placed between air cleaner and throttle body directly in intake air stream. The MAF sensor converts amount of air available in the engine into voltage signal. Air volume information is essential to calculate load in the ECM (Engine Control Module). The information will help for the following.
• How much fuel to inject
• When to iginite cylinder
• When to shift transmission

Following are the types of Mass Airflow sensors:
• Hot Wire MAF Sensor
• Vane Airflow Meter
• Karmen Vortex

MAF sensor working principle

Mass Airflow Sensor

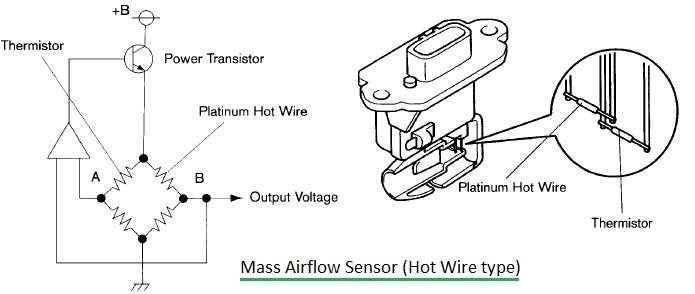

The Hot Wire type of MAF sensor is most common and most popular. It consists of thermistor, platinum hot wire and electronic control circuit. The same has been depicted in the circuit diagram of figure-2.

Let us understand working principle of MAF sensor i.e. hot wire mass air flow sensor.
• Thermistor measures incoming air temperature.
• Hot wire is kept at constant temperature with respect to thermistor using electronic control circuit.
• When air flow increases, hot wire loses heat and control circuit compensates this by increasing more current through the wire.
• At the same time Control circuit measures current flow and proportionately puts out voltage signal.

MAF sensor curve

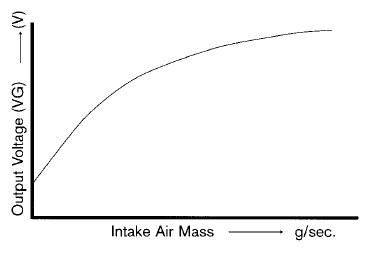

The MAF sensor curve for air flow versus output voltage is shown in the figure-3 above.

Advantages of Hot Wire MAF Sensor

Following are the benefits or advantages of Hot Wire MAF Sensor:
• It offers high level of accuracy in measuring mass of incoming air.
• It responds faster to changes in air flow rate. Hence it provides real time data to the engine control unit (ECU) to enable rapid adjustments of air fuel mixture.
• Hot wire MAF sensors operate over wide range of airflows from idling to full throttle.
• It incorporates temperature compensation which ensure accurate measurements in varying environmental conditions.
• It is compatible with both gasoline and diesel engines.
• It is less sensitive to location as well as orientation.
• It is durable as there are no moving parts.
• Avoids use of separate pressure sensor and temperature sensor to determine air mass.
• It is simple in design, smaller in size and less expensive.

Disadvantages of Hot Wire MAF Sensor

Following are the drawbacks or disadvantages of Hot Wire MAF Sensor:
• Oil and dirt contaminates hot wire and hence deteriorates accuracy of sensor.
• Regular maintenance may be required to clean or replace the MAF sensor if contamination occurs.
• Heated wire or film can be fragile and susceptible to damage from physical impact.
• Response time is not as fast as hot film MAF sensors or MAP sensors.
• Hot wire MAF sensors rely on a stable supply voltage, and any voltage irregularities can affect their accuracy.

Conclusion : In summary, a hot wire MAF sensor measures the mass of incoming air, which is essential for proper engine operation. It helps the ECU maintain the correct air-fuel ratio, optimize engine performance, and reduce emissions. Accurate MAF sensor readings are crucial for a well-functioning and fuel-efficient engine. Hot wire mass air flow sensors offer high accuracy and real-time data for precise air-fuel ratio control but are sensitive to contamination and physical damage. Regular maintenance and consideration of their limitations are necessary to ensure their reliable operation in a vehicle's engine management system.
