LoRaWAN Frequency bands and channels in Russia (RU region)

This page describes LoRaWAN Frequency bands and channels used in Russia (RU region). It also mentions data rate and Tx power (i.e. EIRP).

LoRaWAN frequency bands, channels, EIRP and data rate requirements are specific to different parts of the world.

What is LoRaWAN frequency bands used in Russia ?

Band RU864-870 is used in Russia for LoRaWAN system. Channel frequencies used are 868.9 MHz and 869.1 MHz.

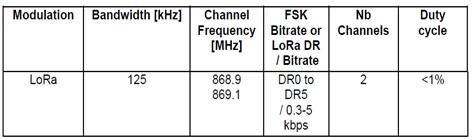

Russia LoRaWAN frequency channels

The table also mentions modulation, BW (125 KHz), channels, bit rate and duty cycle.

LoRaWAN data rates in Russia

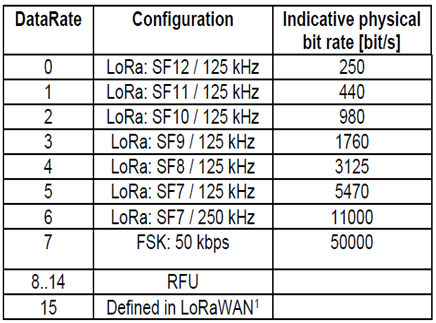

Following table mentions bit rate or data rate for Russia LoRaWAN end device.

Russia LoRaWAN data rates

LoRaWAN Transmit (Tx Power) and EIRP in Russia

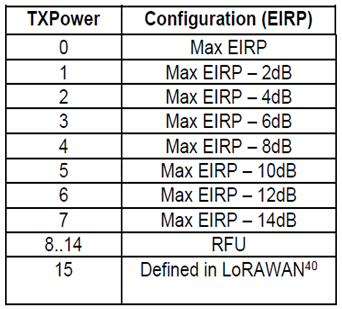

The table below mentions Tx Power and EIRP for LoRaWAN Russia region.

Russia LoRaWAN Tx Power EIRP

LoRaWAN frequency Bands in other regions of the world

• 902 to 928MHz RF Band is used in US.
• 433 to 434 MHz RF band is used in EU region.
• 920.5 to 924.5 MHz, 779 to 787 MHz, 470 to 510 MHz, 433.05 to 434.79 MHz, 314 to 316 MHz, 430 to 432 MHz and 840 to 845 MHz LoRaWAN bands are used in CHINA.

Reference: RP002-1.0.0 LoRaWAN Regional Parameters, www.lora-alliance.org.
