LoRaWAN Frequency bands in INDIA and LoRa channels

This page describes LoRaWAN frequency bands used in INDIA. It mentions LoRa frequency channels and different data rates for these LoRAWAN bands in INDIA.

LoRaWAN network consists of end devices, gateway and network servers, Join server and application server as shown.

LoRaWAN interfaces between its elements

LoRa alliance has published specifications of the LoRaWAN system. It is also managing and maintaining the LoRaWAN specifications.

What is LoraWAN frequency used in INDIA ?

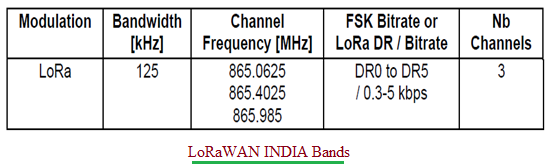

LoRaWAN INDIA Frequency Bands

The table mentions LoRaWAN parameters used in INDIA.
It uses LoRa modulation, Bandwidth (125 KHz), Frequency channels viz. 865.0625 MHz, 865.4025 MHz, 865.985 MHz, Bit rates from 0.3 to 5 Kbps and three frequency channels.

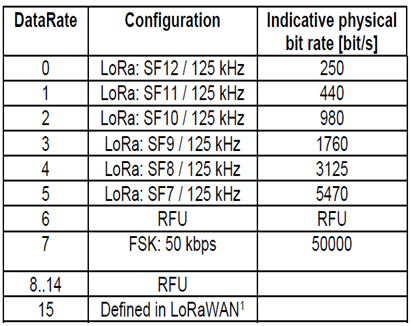

Following table mentions different data rate used in LoRaWAN.

LoRaWAN data rates

LoRaWAN RF Bands in US, EU, CHINA

• 902 to 928MHz RF Band is used in US.
• 433 to 434 MHz RF band is used in EU region.
• 920.5 to 924.5 MHz, 779 to 787 MHz, 470 to 510 MHz, 433.05 to 434.79 MHz, 314 to 316 MHz, 430 to 432 MHz and 840 to 845 MHz LoRaWAN bands are used in CHINA.

Reference: RP002-1.0.0 LoRaWAN Regional Parameters, www.lora-alliance.org.
