LiFi Dongle and Transceiver : Block Diagram and Working

LiFi, or Light Fidelity, is an emerging wireless communication technology that uses visible light to transmit data. One of the key components that enable LiFi technology is the LiFi dongle or LiFi transceiver. These devices play a critical role in delivering internet over light waves, making them essential for LiFi-based internet systems. In this article, we’ll explore the structure and functionality of a LiFi dongle, including its internal block diagram and working principles.

Overview of LiFi Internet Architecture

LiFi internet systems rely on a few essential components: a broadband connection, LED light sources, and LiFi dongles or transceivers. The LiFi dongle acts as the receiver and transmitter, communicating through visible light signals to deliver internet access. The entire setup requires the LED lamps to be placed within the line of sight (LOS) of the device receiving the signal, ensuring optimal data transmission.

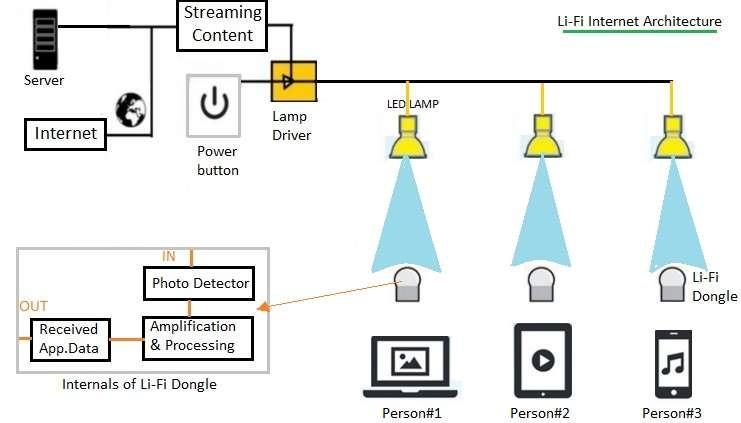

The typical architecture is illustrated in the block diagram below. This setup includes following components.
• Broadband connection to supply internet
• LED lamps as data transmitters
• LiFi dongles or transceivers as data receivers and transmitters

Block Diagram of LiFi Dongle and Transceiver

The block diagram of a LiFi dongle highlights its key components, designed for receiving and transmitting internet data through light. The diagram includes following.
➨Photodetector (Input): The photodetector converts light signals back into electrical signals. This process is essential for receiving data.
➨Amplification/Processing Module (Middle): The data received from the photodetector is processed and amplified for further use. This step ensures the data is in the correct format for transmission or further communication.
➨LED Diode (Output): The processed data is then transmitted through an LED diode, sending light signals that can carry internet data to other LiFi-enabled devices.
➨The block diagram also includes an Ethernet interface, enabling the dongle to connect to a traditional wired internet network.

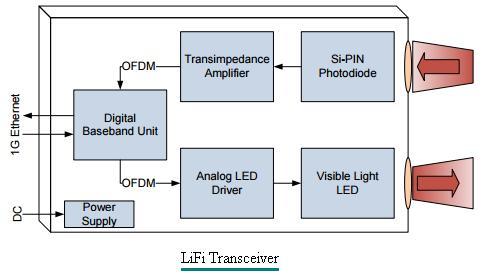

Working of LiFi Transceiver in LiFi Dongles

The LiFi transceiver, sometimes referred to as a LiFi dongle, is the device responsible for both sending and receiving data in a LiFi system. It operates by converting data from an Ethernet frame to an OFDM (Orthogonal Frequency Division Multiplexing) frame, which is then transmitted using visible light.
Here’s how it works:
• Transmission: Data is encoded and modulated using an LED. The light pulses generated by the LED transmit the internet data to the receiving device.
• Reception: On the receiving side, the photodiode (often a Si-PIN photodiode) captures the light pulses and converts them back into electrical signals. These signals are then decoded into usable internet data.
• This process allows for high-speed data transmission in a secure and efficient manner. Since light is used as the communication medium, interference with other radio signals is avoided, making LiFi a viable solution for environments where RF communication may be restricted or congested.

Applications of LiFi Dongle and Transceiver

LiFi dongles and transceivers have a variety of applications, including following :
• Indoor Internet Access: They can be used in homes and offices for high-speed internet access without relying on traditional RF-based WiFi.
• IoT Applications: LiFi's energy efficiency makes it ideal for Internet of Things (IoT) devices that need low power consumption.
• Smart Lighting Systems: Combining data transmission with lighting systems, LiFi enables dual functionality in applications like smart cities and connected environments.

Conclusion

LiFi technology, with its transceivers and dongles, presents a promising alternative to traditional RF-based internet systems. The block diagram of a LiFi dongle reveals how these devices efficiently convert light into internet data, providing secure and fast communication. While still in its early stages, LiFi has the potential to transform the way we access the internet, particularly in environments where RF spectrum congestion or health concerns are prevalent.
