This page describes Primary Synchronization Signal(P-SS) and Secondary Synchronization Signal(S-SS) sequences used in LTE system.It provides comparison between P-SS and S-SS as per LTE standard.

Primary Synchronization Signal (P-SS) Sequences

•  Three PSS sequences are used in LTE, corresponding to the three physical layer identities within each group of cells.
•  The PSS is constructed from a frequency-domain ZC sequence of length 63.
•  Transmitted on 6th symbol of slot 0 and slot10 of each radio frame on 72 subcarriers centered around DC.

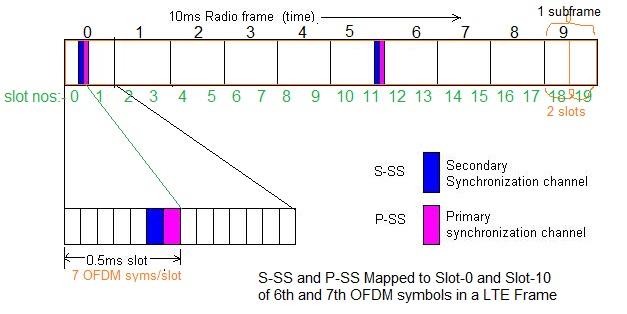

LTE PSS vs SSS or primary SCH secondary SCH

Secondary Synchronization Signal (S-SS) Sequences

•  SSC1 and SSC2 are two codes are two different cyclic shifts of a single length-31 M sequence.
•  Each SSS sequence is constructed by interleaving, in the frequency-domain, two length-31 BPSK-modulated secondary synchronization codes
•  Two codes are alternated between the first and second SSS transmissions in each radio frame
•  This enables the UE to determine the 10 ms radio frame timing from a single observation of a SSS
•  Transmitted on 5th symbol of slot 0 and slot10 of each radio frame on 72 subcarriers centered around DC.

PSS carries physical layer identity (NID)(2)
SSS carries physical layer cell identity group (NID)(1)
Cell identity is computed using (NID)cell = 3*NID(1) + NID (2) ,
Where (NID)(1) = 0,1,.....,167 and (NID)(2) = 0,1,2


Signal Full
Form		 Direction Position Modulation/
Coding scheme		 Function
P-SS Primary
Synchro-
nization
Signal 		Downlink 6th symbol of slot 0 and
slot 10(time exis)
mapped on 72 subcarriers
centered around DC(frequency axis) 		Zadoff Chu sequence of
length 63 		UE first finds the
primary synchronization signal (PSS)
which is located in the
last OFDM symbol of first
time slot of the first and
5th sub-frames This enables UE to be
synchronized on sub-frame level
Primary Synchronization Signal
helps for Slot Timing
Detection and Physical Layer ID
(0,1,2) detection
S-SS Secondary
Synchro-
nization
Signal 		Downlink 5th symbol of slot 0 and
slot 10(time exis)
mapped on 72 subcarriers
centered around DC(frequency axis) 		BPSK modulated length-31 M sequence From SSS, UE is able to obtain
physical layer cell
identity group number (0 to 167)
It helps for
Radio Frame Timing detection, find Physical
Layer Cell ID, cyclic prefix
length detection, FDD or TDD detection

P-SS constellation diagram

Primary Synchronization Signal PSS constellation

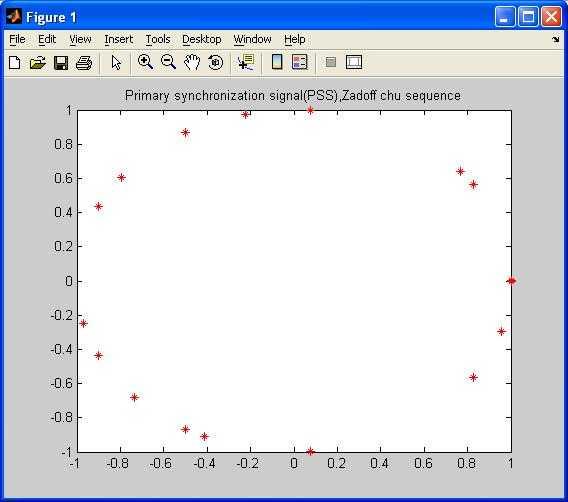

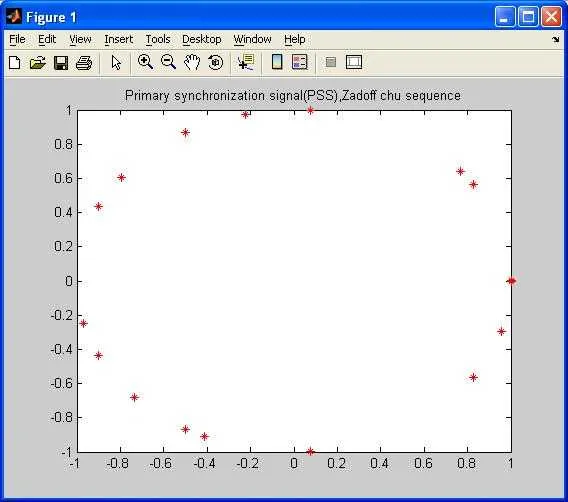

As shown in the figure P-SS constellation plots frequency domain view of zadoff chu sequences.

S-SS constellation diagram

Secondary Synchronization Signal SSS constellation

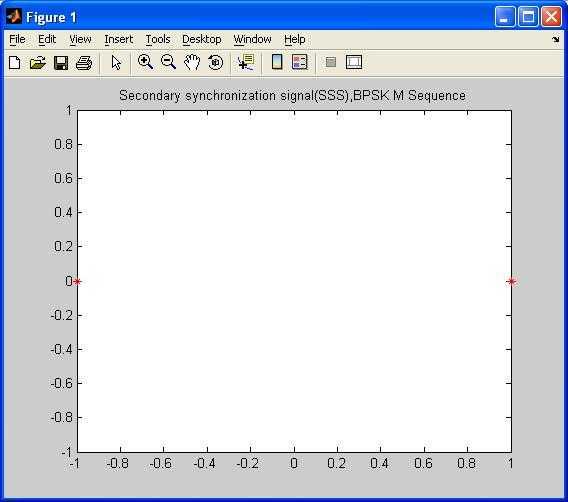

As shown in the figure S-SS constellation plots BPSK M sequence signals.
