CWDM vs DWDM | Difference between CWDM and DWDM
CWDM (Coarse Wavelength Division Multiplexing) and DWDM (Dense Wavelength Division Multiplexing) are technologies used in optical fiber communications to transmit multiple signals simultaneously over a single optical fiber by using different wavelengths of light. Let us compare CWDM vs DWDM and derives difference between CWDM and DWDM with respect to their full forms, frequency range, wavelength, applications, advantages and limitations.
CWDM | Coarse Wavelength Division Multiplexing
Wavelength Range:
• Wavelengths: Typically uses wavelengths spaced 20 nanometers (nm) apart
within the range of 1270 nm to 1610 nm (or 1470 nm to 1610 nm in the newer extended band).
• Channels: Supports up to 18 channels (or wavelengths).
Applications:
• Short to Medium Distances: Used for applications where fiber distances are relatively short (up to 80 kilometers).
• Access Networks: Commonly deployed in metropolitan area networks (MANs), campus networks, and access networks due to its
cost-effectiveness and simpler equipment requirements.
• Lower Cost: Generally more cost-effective compared to DWDM due to wider wavelength spacing and simpler components.
CWDM Advantages:
• Cost-Effective: Lower cost of transceivers and equipment.
• Ease of Deployment: Simple installation and maintenance.
• Power Consumption: Requires less power for operation.
CWDM Limitations:
• Channel Density: Limited number of channels compared to DWDM.
• Distance Limitations: Suitable for shorter distances compared to DWDM.

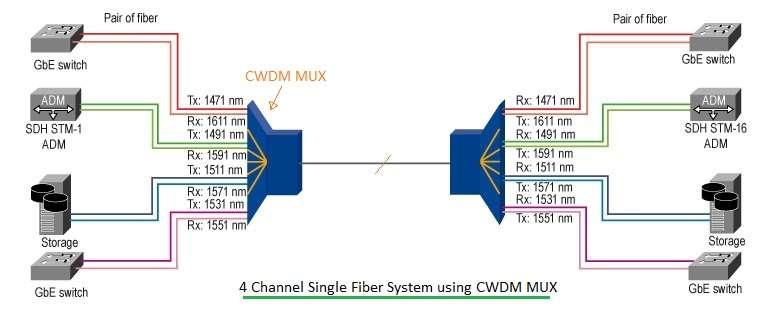

The figure-1 depicts CWDM based fiber system. As shown, it is used to transmit 4 different applications using single optical fiber instead of pair of fiber cables. Different applications are using different light wavelengths which helps in multiplexing and de-multiplexing applications at transmit and receive end.
DWDM | Dense Wavelength Division Multiplexing
Wavelength Range:
• Wavelengths: Uses wavelengths spaced much closer together, typically 0.8 nm or less.
• Channels: Supports up to 40, 80, or even more channels (or wavelengths) in the C-band and
L-band of the optical spectrum.
Applications:
• Long Distances: Used for long-haul transmission over distances
ranging from hundreds to thousands of kilometers.
• High Capacity: Ideal for networks requiring high bandwidth and capacity,
such as backbone networks and interconnecting data centers.
• High Density: Packs more channels into the optical spectrum compared to CWDM,
enabling greater scalability.
DWDM Advantages:
• High Capacity: Supports significantly higher data rates and capacity due to densely packed channels.
• Long-Haul Transmission: Capable of transmitting over extended distances without signal degradation.
• Flexibility: Provides greater flexibility in network design and expansion.
DWDM Limitations:
• Cost: Higher cost of transceivers and equipment compared to CWDM.
• Complexity: Requires more sophisticated optical components and precise wavelength control.
The figure-2 depicts DWDM system consisting of transmitter and receiver parts.
Typically DWDM consists of MUX, DEMUX, isolators, circulators, EDFA (Erbium Doped Fiber Amplifier) etc.
DWDM system basics

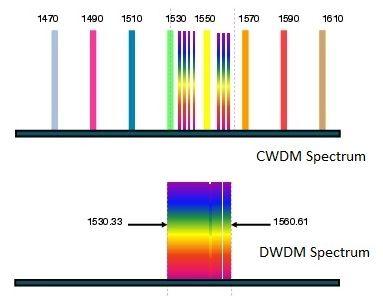

Figure-3 depicts spectrum of CWDM and DWDM technologies. As shown DWDM spectrum will have tighter wavelength spacing between the channels compare to CWDM counterpart.
Difference between CWDM and DWDM
Following table compares CWDM vs DWDM with respect to various parameters.
| Specifications/Features | CWDM | DWDM |
|---|---|---|
| Full form | Coarse Wavelength Division Multiplexing,WDM system having less than 8 active wavelengths per optical fiber | Dense Wavelength Division Multiplexing, WDM system having more than 8 active wavelengths per optical fiber |
| characteristic | Defined by wavelengths | Defined by frequencies |
| capacity (no of channels) | lower, Up to 18 channels (Typically) | higher, Up to 40, 80 or more channels |
| cost | lower | higher |
| Distance | short range communication (Up to 80 Km) | long range communication (Hundreds to thousands of km) |
| Frequencies | uses wide range frequencies | uses narrow range frequencies |
| Wavelength Range | 1270 to 1610 nm (Standard) | C-Band (Typically 1530 nm to 1565 nm) and L-band (1565 nm to 1625 nm) |
| Wavelength spacing | more, 20 nm (typically) | less, 0.8 nm or less (typically), hence can pack 40+ channels compare to CWDM in the same frequency range |
| Amplification | light signal is not amplified here | light signal amplification can be used here |
| Channel density | Lower | Higher |
| Power consumption | Lower | Higher |
| Complexity | Simple equipment and installation | More complex equipment and installation |
| Flexibility | Less flexibility in channel scalability | Greater flexibility in network scalability |
| Drift | Wavelength drift is possible | Precision lasers are needed to keep channels on the target |
| Spectrum utilization | Breaks the spectrum into big chunks | dices the spectrum into small pieces |
| No. of active wavelengths per fiber | Fewer than 8 | More than 8 |
Conclusion : Both CWDM and DWDM are essential technologies in modern telecommunications, enabling efficient utilization of optical fiber infrastructure to meet the growing demand for high-speed data transmission over long distances and within metropolitan areas. Their choice depends on factors such as required bandwidth, distance of transmission and budget considerations in network deployment.
