CPU vs DSP vs FPGA
Central Processing Units (CPUs), Digital Signal Processors (DSPs), and Field-Programmable Gate Arrays (FPGAs) are all types of processors, each designed for specific applications and use cases. Let us compare CPU vs DSP vs FPGA and understand differences between CPU, DSP and FPGA.
CPU-Central Processing Unit or Microprocessor
General-Purpose Processing: CPUs are designed for general-purpose processing tasks and are the heart of most computing devices, including personal computers, servers, and mobile devices.
They are optimized for tasks such as running operating systems, handling complex algorithms, and executing a wide range of applications.
Architecture: CPUs have a complex architecture with a deep pipeline and various specialized units (ALU, FPU, control unit, etc.) to
handle a broad spectrum of instructions and tasks.
Programming Model: Programmed using high-level languages like C, C++, Java, and others.
Operating systems provide a layer of abstraction for managing resources and scheduling tasks.
Flexibility: CPUs offer a high level of flexibility and are suitable for applications where the workload varies and requires adaptability.
Performance: Generally provides good performance for a wide range of applications, but might not be optimized for specific tasks like signal
processing.
Example : Intel Core i7 microprocessor.

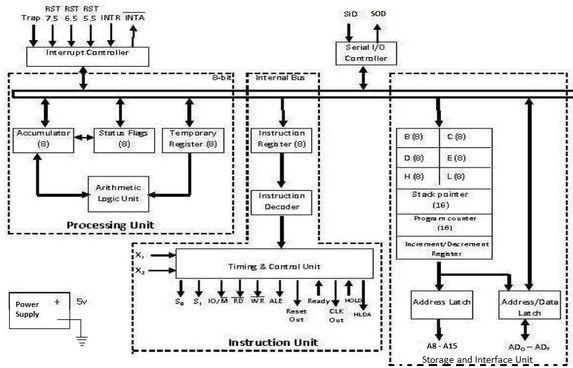

The figure-1 depicts 8085 microprocessor (i.e. CPU) architecture.
Refer CPU Architecture➤.
Following are the advantages of CPU or microprocessor.
Versatility: CPUs are general-purpose processors capable of handling a wide range of tasks and applications.
Ease of Programming: Programming for CPUs is typically done in high-level languages, making development more accessible.
Resource Management: Operating systems manage resources, facilitating multitasking and resource allocation.
Widespread Usage: CPUs are widely used in various computing devices, from personal computers to servers.
Following are the disadvantages of CPU.
Limited Specialization: May not be optimized for specific tasks, leading to suboptimal performance for certain applications.
Limited Parallelism: Traditional CPUs may have limitations in parallel processing compared to specialized processors.
Power Consumption: High-performance CPUs can consume more power, impacting energy efficiency in certain applications.
DSP-Digital Signal Processor
Signal Processing: DSPs are specialized processors designed for efficiently processing digital signals, such as audio, video, and communications signals.
They are optimized for tasks involving repetitive mathematical operations, such as filtering, convolution, and Fourier transforms.
Architecture: DSPs have a more streamlined architecture focused on efficiently executing signal processing algorithms.
Often feature parallel execution units, multiple accumulators, and specialized instructions for signal processing tasks.
Programming Model: Typically programmed using low-level languages like assembly or higher-level languages with DSP-specific extensions.
DSP-specific development tools and libraries are often used.
Flexibility: Less flexible than general-purpose CPUs but highly efficient for specific signal processing tasks.
Performance: Provides high performance for signal processing applications due to specialized hardware features and optimizations.
Example : Texas Instruments TMS320C6748 DSP

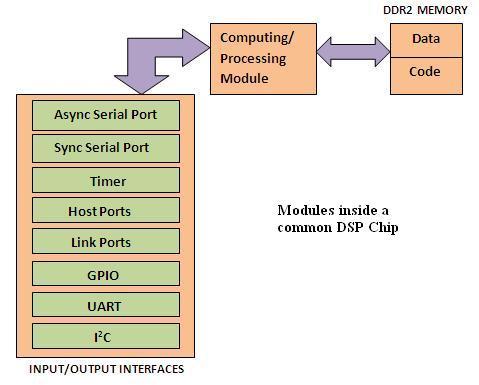

The figure-2 depicts DSP architecture.
Refer DSP Architecture➤.
Following are the advantages of DSP.
Specialized Processing: DSPs are optimized for signal processing tasks, offering high performance in specific domains.
Parallelism: DSP architectures often support parallel processing, enhancing the efficiency of signal processing algorithms.
Efficient Algorithms: DSPs include specialized instructions and hardware features tailored for common signal processing operations.
Low Latency: Suitable for real-time applications due to their ability to process data with low latency.
Following are the disadvantages of DSP.
Limited General-Purpose Use: DSPs are specialized and may not perform as well for general-purpose computing tasks.
Programming Complexity: Programming for DSPs often requires knowledge of low-level languages and specific optimizations.
Cost: DSPs designed for high-performance applications can be more expensive compared to general-purpose CPUs.
FPGA-Field Programmable Gate Array
Configurability: FPGAs are hardware devices that can be programmed and reconfigured by users to implement custom digital circuits.
They offer a high level of flexibility and can be tailored to specific applications.
Architecture: FPGAs consist of configurable logic blocks (CLBs), interconnects, memory blocks, and other specialized resources.
Logic circuits are defined by the user in a hardware description language (HDL) and then synthesized into a configuration bitstream.
Programming Model: Programmed using HDLs like Verilog or VHDL, which describe the hardware functionality.
Users define the logic circuits and the interconnections between them.
Flexibility: Highly flexible and suitable for applications with rapidly changing requirements or those that benefit from hardware acceleration.
Performance: Can achieve high performance for specific tasks, especially when parallelism and hardware acceleration are crucial.
May have a steeper learning curve for design compared to CPUs and DSPs.
Example : Xilinx Virtex UltraScale+ FPGA.

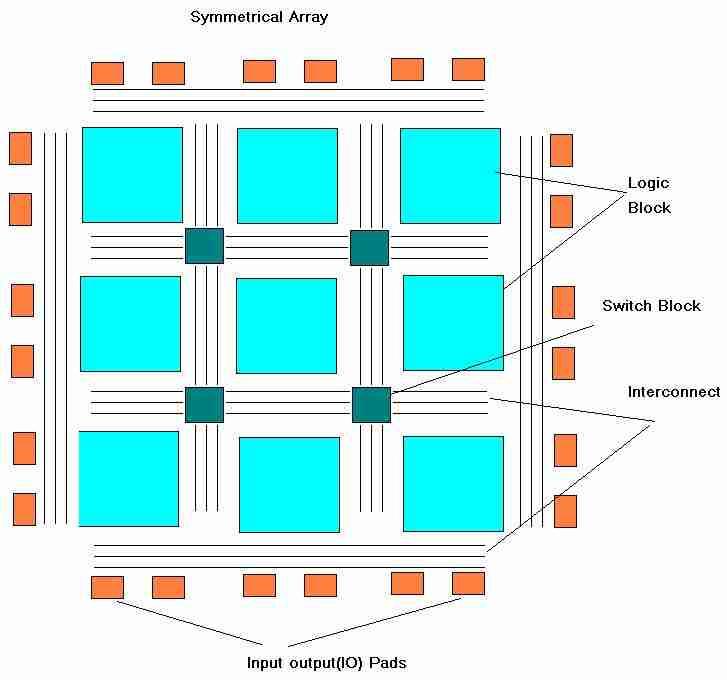

The figure-3 depicts FPGA Architecture.
Refer FPGA Architecture➤.
Following are the advantages of FPGA.
Customization: FPGAs allow users to create custom digital circuits tailored to specific applications, offering a high degree of flexibility.
Parallelism: FPGAs excel in parallel processing, making them suitable for tasks requiring massive parallelism.
Hardware Acceleration: Well-suited for hardware acceleration, enhancing performance for certain algorithms and computations.
Reconfigurability: FPGAs can be reprogrammed, allowing adaptation to changing requirements or the implementation of different functionalities.
Following are the disadvantages of FPGA.
Complexity: Designing for FPGAs requires expertise in hardware description languages (HDLs) and can have a steeper learning curve.
Cost: FPGAs can be more expensive than general-purpose CPUs, especially for large-scale applications.
Power Consumption: Depending on the configuration, FPGAs may consume more power compared to dedicated ASICs in certain scenarios.
Difference between CPU DSP FPGA
Following table-1 provides comparison between CPU, DSP and FPGA.
| Feature | CPU | DSP | FPGA |
|---|---|---|---|
| Functionality | General-purpose processor | Specialized for signal processing | Configurable hardware device |
| Architecture | Complex, deep pipelines | Streamlined, optimized for DSP | Configurable logic blocks (CLBs), interconnects, memory blocks |
| Programming Model | High-level languages (C, C++, Java) | Low-level (assembly), DSP-specific extensions | Hardware description languages (HDLs) like Verilog or VHDL |
| Flexibility | Highly flexible, general-purpose | Less flexible, specialized | Highly flexible, customizable |
| Performance | Good overall performance | High performance for DSP tasks | Performance depends on configuration and design |
| Primary Use Cases | General-purpose computing tasks | Signal processing applications | Custom hardware acceleration, specific applications |
| Parallelism | Moderate parallelism | Optimized for parallel processing | Parallelism can be efficiently implemented |
| Learning Curve | Relatively low | Moderate | Steeper learning curve for hardware design |
| Resource Management | OS-managed | DSP tools and libraries | User-defined hardware configuration |
| Applications | Desktops, servers, mobile devices | Audio processing, communication systems | Hardware acceleration, real-time processing |
Difference between CPU and FPGA
Following table-2 mentions difference between CPU and FPGA.
| Specifications | CPU | FPGA |
|---|---|---|
| Computation | Fixed arithmetic engines | User configurable logic |
| I/O | Fixed and dedicated I/O ports | User configurable I/O ports |
| Programmability | Program execution | Registers will determine modes and also defines operating parameters. |
| Ease of programming | C simplifies development tasks, not required to be worried about hardware. | HDL requires knowledge of hardware |
| Upgrades and maintenance | less difficult | more difficult |
| Execution | Sequential | parallel |
| Throughput | lower | higher |
| Complex algorithm implementation | Easy | Difficult |
| Peripherals | Equipped with peripherals with RS232, USB, Ethernet etc. | Significant HW and SW effort is needed to implement these on FPGA chip. |
| Appropriate tasks | • decision making • complex analysis • lower data rate computation • block oriented tasks |
• compute intensive algorithms • massively paralle operations • high data rate computation • streaming tasks |
Difference between DSP and FPGA
Following table-3 mentions difference between DSP and FPGA.
| Specifications | DSP | FPGA |
|---|---|---|
| Functionality | Specialized for digital signal processing tasks. | Hardware for various applications. |
| Architecture | Streamlined architecture optimized for signal processing. | Configurable logic blocks, interconnects, and resources. |
| Programming model | Programmed using low-level languages with DSP extensions. | Programmed using hardware description languages (HDLs). |
| Flexibility | Less flexible than FPGAs, optimized for specific tasks. | Highly flexible and adaptable to various applications. |
| Parallelism | Optimized for parallel processing in signal processing tasks. | Parallelism can be efficiently implemented and customized. |
| Learning curve | Requires expertise in DSP programming and optimization. | Requires hardware design expertise using HDLs. |
| Resource utilization | Specialized for efficient use of resources in signal processing. | Resources can be customized based on the application needs. |
| Latency | Low-latency processing, suitable for real-time applications. | Latency depends on the FPGA design and configuration. |
| Cost | DSPs may be cost-effective for specific signal processing tasks. | FPGAs can be more expensive but offer customization benefits. |
| Power consumption | Typically optimized for power efficiency in signal processing. | Power consumption depends on FPGA configuration and use case. |
| Application as per sample rate | Standalone DSP chips provide cost effective solution at few KHz of sample rate. | FPGA is best suitable for sample rates are in few MHz. |
| Data rate | For low data rates extra cycles are available and hence DSP is not bandwidth limited. | FPGA is easier and efficient to implement when I/O rates are greater than few Mbytes/sec. |
| Data width/precision | No limitation if data width is same as bus width of processor. Moreover there is no room for bit growth in the DSP algorithms. | Suitable for high precision/high data width as it has uniform parallel structure. |
| Implementation of decision trees or conditional branches. | DSPs are ideal. | FPGAs are not suitable. These tasks can be done with the use of embedded cores or microBlaze. |
Conclusion : In summary, CPUs are versatile and general-purpose, DSPs are specialized for signal processing, and FPGAs provide flexibility through hardware customization. The choice among CPU, DSP, and FPGA depends on the specific requirements and nature of the computational tasks in a given application.
