Advantages of M2M Communication | disadvantages of M2M Communication

This page covers advantages and disadvantages of M2M Communication and M2M architecture. It mentions benefits or advantages of M2M Communication and drawbacks or disadvantages of M2M Communication. M2M refers to Machine to Machine Communication.

What is M2M Communication?

The term M2M communication describes devices which are connected to the internet using fixed/wireless networks and communicate with each other as well as with other devices on the network. They are known as active communication devices. M2M communication is one element in the network made of smart meters, smart lighting, smart parking etc.

Ideally M2M communication provides instantaneous secured access to the internet at any place at any speed. It works both indoors as well as outdoors. M2M supports various network topologies such as star, mesh, tree, peer to peer etc.

M2M Architecture

M2M Architecture

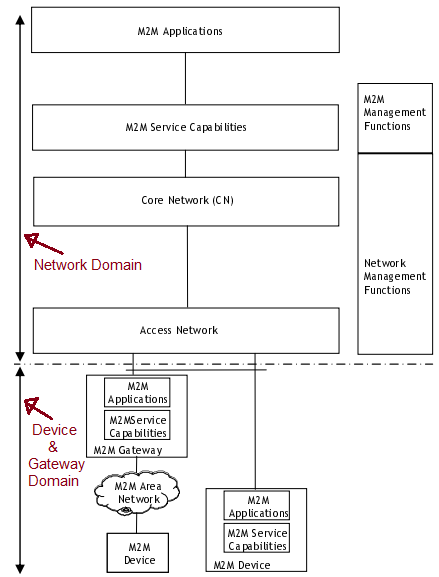

Figure-1 : M2M Architecture, Image source: ETSI TS 102 690 document

MQTT protoco is used for M2M, WSN and IoT scenarios. MQTT uses publish/subscribe model having asynchronous communication with messages (i.e. events) between clients and server (i.e. broker). Other protocols are also used in various M2M networks.

The figure-1 depicts high level M2M architecture. As shown M2M includes network domain and Device/gateway domain. The Device and Gateway Domain include following:
• M2M device
• M2M Area Network
• M2M Gateway

The network domain include following.
• Access Network
• Core Network
• M2M service capabilities
• M2M applications
• Network Management Functions
• M2M Management Functions

M2M devices are connected to network domain via multiple M2M gateways. Some of the examples of M2M area networks are PAN (Personal Area Network) and LAN technologies. PAN technologies include 802.15.1, Zigbee, ISA100.11a, bluetooth, IETF ROLL etc. LAN technologies include PLC, KNX, M-Bus, wireless M-Bus etc.

M2M communication is used along with IoT to provide vast storage, resources and protection. Some of the characteristics of M2M communication are as follows.
-Large number of short lived sessions.
-(Usually) low payload
-Vastly diverse characteristics (e.g. battery capacity)
-Vastly diverse QoS requirements (e.g. delay)

Benefits or advantages of M2M Communication

Following are the benefits or advantages of M2M Communication:
➨M2M communication is supported by cellular networks either directly or through gateway.
➨It is easy to roll out and maintain.
➨It is available with fixed and mobile networks both indoors and outdoors.
➨It offers higher range, minimum latency, higher throughput and consume less energy.
➨It enables communication of smart devices without any human intervention.
➨The security and privacy issues in IoT networks are resolved by using M2M communication facility.
➨Large protection, data collection and data processing is possible.

Drawbacks or disadvantages of M2M Communication

Following are the drawbacks or disadvantages of M2M Communication:
➨Use of cloud computing in M2M means dependence on others which could limit flexibility and innovation.
➨Security and ownership of data is a big concern.
➨Interoperability between cloud/M2M IoT devices is a big concern in such networks.
➨It is designed and optimized for small number of network devices.
➨M2M communication requires availability of constant internet connection with reasonable speed.
