Advantages and disadvantages of DRAM Memory in computers

This page covers advantages and disadvantages of DRAM. It mentions DRAM advantages or benefits and DRAM disadvantages or drawbacks. DRAM stands for Dynamic Random Access Memory.

What is DRAM ?

Dynamic Random Access Memory, or DRAM, is a type of volatile computer memory that is commonly used in personal computers, workstations, and servers. DRAM is considered volatile because it loses its stored information when power is removed. Here are the key features and characteristics of DRAM.

  • Volatility: As mentioned, DRAM is volatile, meaning that it requires a constant power supply to retain the data stored in its memory cells. When the power is turned off, the data is lost. This is in contrast to non-volatile memory, such as hard drives or SSDs, which retain data even when the power is off.
  • Structure: DRAM is organized in a matrix of rows and columns, forming a grid of memory cells. Each cell stores a single bit of data, represented as a binary value of 0 or 1. These memory cells are made up of capacitors and transistors.
  • Dynamic Operation: The term "dynamic" in DRAM refers to the fact that the memory cells need to be periodically refreshed. This is because the charge in the capacitors representing the stored data gradually leaks away over time. To counter this, the memory controller reads and then rewrites the data in each cell at regular intervals, typically several thousand times per second.
  • Access Speed: DRAM is known for its relatively fast read and write speeds, making it suitable for use as the main memory (RAM) in a computer system. However, it is slower than other types of memory, such as SRAM (Static Random Access Memory), which doesn't require periodic refreshing.
  • Capacity: DRAM chips are available in various capacities, typically measured in gigabytes (GB) or terabytes (TB). Advances in technology have allowed for the development of higher-capacity DRAM modules over time.
  • Use as System Memory: DRAM is the primary type of memory used for system RAM in computers. It is responsible for temporarily storing data that the CPU actively uses or processes. When you run applications on your computer, the data and instructions are loaded into DRAM for quick access by the processor.
  • Dual In-Line Memory Modules (DIMMs): DRAM is often packaged into DIMMs, which are small circuit boards containing multiple DRAM chips. DIMMs are then installed in memory slots on the motherboard of a computer.

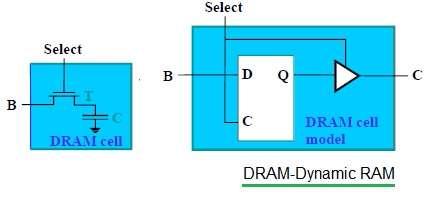

DRAM-Dynamic RAM

Dynamic Random Access Memory (DRAM) comes in various types, each with its own characteristics and use cases. Here are some common types of DRAM.

SDRAM (Synchronous Dynamic RAM) :
Construction: SDRAM is synchronous, meaning it is synchronized with the system bus. It uses a clock signal to coordinate the timing of data transfers.
Characteristics: SDRAM is faster than its predecessor (asynchronous DRAM) due to its synchronized nature. It is commonly used in desktop computers and workstations.

DDR SDRAM (Double Data Rate Synchronous DRAM) :
Construction: DDR SDRAM doubles the data transfer rate by transferring data on both the rising and falling edges of the clock signal.
Characteristics: DDR SDRAM provides higher bandwidth compared to SDRAM. Common versions include DDR, DDR2, DDR3, and DDR4, each offering improvements in speed and efficiency over the previous generation.

LPDDR SDRAM (Low Power Double Data Rate Synchronous DRAM) :
Construction: LPDDR SDRAM is a low-power variant of DDR SDRAM designed for mobile devices.
Characteristics: LPDDR SDRAM is optimized for power efficiency, making it suitable for battery-powered devices like smartphones, tablets, and ultrabooks. Versions include LPDDR, LPDDR2, LPDDR3, LPDDR4, and LPDDR5, with each iteration improving energy efficiency and performance.

GDDR SGRAM (Graphics Double Data Rate Synchronous Graphics RAM) :
Construction: GDDR SGRAM is specifically designed for graphics processing units (GPUs) in graphics cards.
Characteristics: GDDR SGRAM provides high bandwidth and is optimized for the parallel processing demands of graphics applications. Versions include GDDR, GDDR2, GDDR3, GDDR4, GDDR5, GDDR5X, GDDR6, and GDDR6X, with each iteration offering increased bandwidth and improved features for graphics-intensive tasks.

DDR5 SDRAM (Double Data Rate 5 Synchronous DRAM) :
Construction: DDR5 SDRAM is the latest generation of DDR SDRAM, succeeding DDR4.
Characteristics: DDR5 SDRAM offers higher data transfer rates, increased capacity, and improved efficiency compared to its predecessors. It is commonly used in high-performance computing systems.

Benefits or advantages of DRAM

Following are the benefits or advantages of DRAM.
1. DRAM offers fast read and write access speeds which makes it suitable for use as main memory in computers.
2. DRAM is more cost effective compare to SRAM (Static Random Access Memory). Hence large amounts of DRAM memory can be afforded in computer systems.
3. DRAM chips can achieve high storage densities which allows creation of memory modules with large capacities.
4. Dynamic nature of DRAM allows efficient use of space as it doesn't require constant power to retain data. Hence it is suitable for applications where power consumption is a concern.
5. DRAM is compatible with various computer architectures and systems. This ensures interoperability and ease of integration into different hardware configurations.

Drawbacks or disadvantages of DRAM

Following are the limitations or drawbacks or disadvantages of DRAM:
1. DRAM is volatile and hence stored data is lost when power is removed or interrupted. This requires constant refreshing to maintain data integrity, which can consume additional power and resources.
2. The constant refreshing process in DRAM memory contributes to wear and tear which limits its lifespan. Over period of time, memory cells of DRAM may degrade which leads to potential failures. This is in contrast to non-volatile memory types, like flash memory which have longer lifespan.
3. DRAM requires periodic refreshing which introduces complexity in memory controller and can consume more system resouces. This mechanism is crucial for maintaining the data stored in the memory cells but adds a layer of management overhead.
4. While DRAM offers high-density storage at a lower cost, it is generally slower than SRAM. SRAM is faster but more expensive and less dense.
5. DRAM is vulnerable to a phenomenon known as "Row Hammer" in which repeated accesses to a specific row of memory cells can cause bit flips in adjacent rows. This can potentially lead to data corruption and security vulnerabilities.
6. Due to its volatile nature, DRAM is not suitable for persistent storage of data. It is used primarily as temporary storage (RAM), and data needs to be stored in non-volatile storage (e.g., hard drives, SSDs) for long-term retention.

In summary, while DRAM offers speed, cost-effectiveness, and high density, it comes with the trade-offs of volatility, limited lifespan, and susceptibility to certain issues. Advances in memory technology continue to address these challenges and seek to improve the overall performance and reliability of computer memory.
