60 GHz RF channels | channel-1,channel-2,channel-3,channel-4
This page mentions 60 GHz RF Channels viz. channel-1, channel-2, channel-3 and channel-4. It also mentions 60 GHz Frequency Allocations by Region viz. US, CANADA, Europe, South Korea, Japan, Australia and China.
What is 60GHz?
Introduction:
Following are the features of 60GHz frequency.
• This particular frequency falls in millimeter wave range (i.e. 30 GHz to 300 GHz) in the electromagnetic frequency spectrum.
• It falls in globally used unlicensed band viz. 57 to 66 GHz recently adopted across the world for
commercial use for wireless communication.
• 60GHz wavelength is about 0.5 centimeters.
• It is also known as V-band frequency.
• It is used for low power and short distance communication.

• There four popular channels viz. each having about 2 GHz of bandwidth.

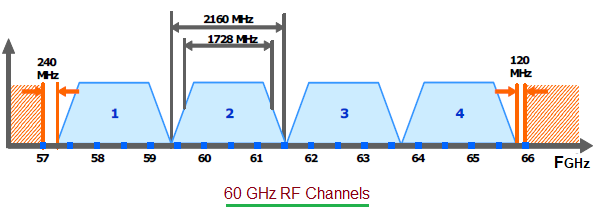

List of 60 GHz RF channels
Following table-1 mentions list of 60 GHz RF channels with start frequency, center frequency and stop frequency.
Channel-ID | Start Frequency | Center Frequendcy | Stop Frequency |
---|---|---|---|
Channel-1 | 57.240 GHz | 58.320 GHz | 59.400 GHz |
Channel-2 | 59.400 GHz | 60.480 GHz | 61.560 GHz |
Channel-3 | 61.560 GHz | 62.640 GHz | 63.720 GHz |
Channel-4 | 63.720 GHz | 64.800 GHz | 65.880 GHz |
Countrywise 60 GHz RF band allocations
Following table-2 mentions Countrywise list of 60 GHz RF band allocations along with EIRP (Effective Isotropic Radiated Power).
Country | 60 GHz Band | EIRP or (Pmax.) |
---|---|---|
US and Canada | 57.05 to 64 GHz | 40 dBm |
Europe | 57 to 66 GHz | 43 dBm |
South Korea | 57 to 64 GHz | Pmax : (10 mWatt) |
Japan | 57 to 66 GHz | 57 dBm |
Australia | 59.4 to 62.9 GHz | 51.8 dBm |
China | 59 to 64 GHz |
Also refer advantages and disadvantages of 60 GHz frequency and more on what is 60 GHz.
