GSM protocol stack | GSM Protocol Architecture MS

This page on GSM protocol stack covers GSM protocol architecture for MS and BTS. It describes architecture of GSM protocol layers viz. layer 1 (PHY) and layer 2 (LAPD,LAPDm).

Introduction

Let us understand GSM Layer 1, Layer 2 and Layer 3 modules of MS(Mobile Station),BTS(Base Transceiver Station),BSC(Base Station Controller) and MSC(Mobile Switching Center). To gain in depth knowledge one has to understand all the message formats of all the modules such as radio, LAPD, LAPDm, RRM, MM, CM, BTSM, BSSMAP, SCCP, MTP as described in 3GPP release documents.

gsm protocol stack

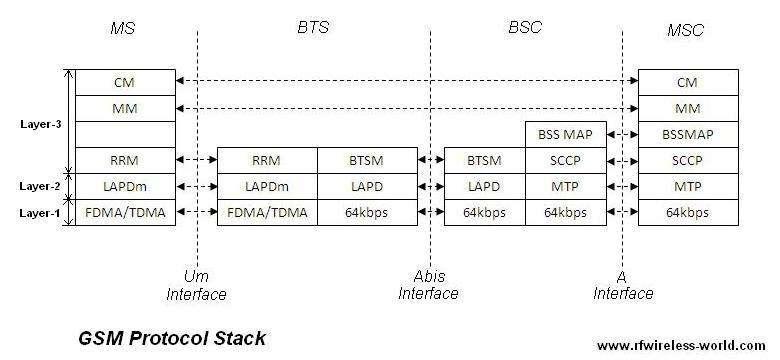

The figure describes the GSM protocol stack at the GSM network elements.

GSM protocol Layer 1 (Physical Layer)

As mentioned in the figure, FDMA/TDMA is the air interface(radio), also called Um interface. For more on this interface refer GSM tutorial in tutorials section. At MS, FDMA/TDMA is used which is also followed at BTS, BTS takes this format from MS and convert it to 64kbps digital format for the digital link and interfaces with BSC. BSC communicates with MSC in the same format.

gsm physical layer transmitter

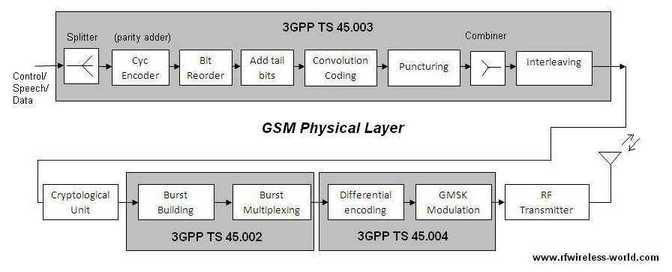

Refer gsm physical layer for more information on gsm protocol layer 1.

GSM protocol Layer 2 (LAPD, LAPDm)

GSM protocol Layer 2 is the data link layer, which does following three main functions.
- Establish,maintain and tear down the link
- Flow control
-Error detection
- Work on the Layer 3 frames

At Layer 2 LAPD and LAPDm is used. LAPD is the ISDN(Integrated Services Digital Network) protocol for D Channel. LAPDm is the modified version of LAPD for mobile station. LAPDm does not have CRC for Error detection. This layer uses any of the following format to carry frames. 1.)Format A for DCCHs(for channels having no information field) 2.)Format B for DCCHs(containing an information field) 3.)Format Bbis for BCCH, PCH, and AGCH. 4.)Format C for random access signals The maximum LAPDm frame length is 23 bytes i.e. 184bits.

Depending on type of frame format LAPDm will have Address field(8 bits), Control field(8 bits), Frame Length(8 bits),signaling data(23 octets) and fill in data. Address field carry two important parameters C/R and SAPI. C/R indicates whether the frame is command or response and also mention whether the direction of frame is BS to MS or from MS to BS. SAPI takes either value of 0,3 or other values. For SAPI of 0 is used for messages from the RRM,MM and CC , and SAPI of value 3 for message from the SMS and Supplementary Services (SS) messages.

Control field of this layer 2 contains sequence numbers and type field to differentiate various frames. There are three type of frames supported here, supervisory,unnumbered information transfer and control function( unacknowledged mode), numbered information transfer(multiframe acknowledged mode). The frame length field contains the length of the layer 3 message within the information field of the LAPDm frame. If the message is less than the length specified in parameter N201 (standard specifies this) of the radio interface, fill-in data octets are used to fill up the remaining gap. Value of fill-in data is specified in GSM TS document.

LAPD at BTS converts potentially unreliable physical link of MS into reliable link.This connects with BSC's MTP part. This is done with the use of CRC and ARQ techniques. ARQ stands for Automatic Repeat Request. ARQ works on the principle of re-transmission of packet when the erroneous packet is received at the receiver.

gsm architecture

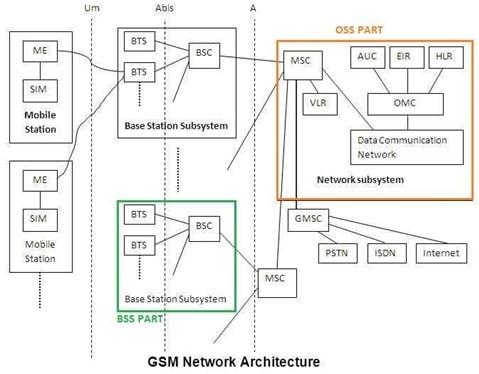

GSM protocol stack can be explored by studying deep into gsm protocol layers at various network elements viz. MS, BTS, BSC and MSC. For more information on gsm protocol architecture, refer gsm network architecture elements.

GPRS Protocol stack

Refer GPRS protocol stack for more information.
