Understanding Space Rocket Structure, Parts and Their Functions
Space rockets are engineering marvels, designed with precision and purpose to propel payloads beyond Earth’s atmosphere. Each part, from the propulsion system to the payload bay, plays an essential role in the rocket's overall structure and functionality. This article delves into the intricate structure of rockets, explaining key components and their specific functions.
A space rocket is a vehicle designed to transport payloads, such as satellites, scientific instruments, or human crew, into outer space. Rockets work on the principle of propulsion, using the expulsion of mass (exhaust gases) to generate thrust in the opposite direction, according to Newton's third law of motion.
Rocket parts serve various functions, each crucial for the successful launch, propulsion, and navigation of a rocket. Here's an overview of the functions of some essential rocket parts.

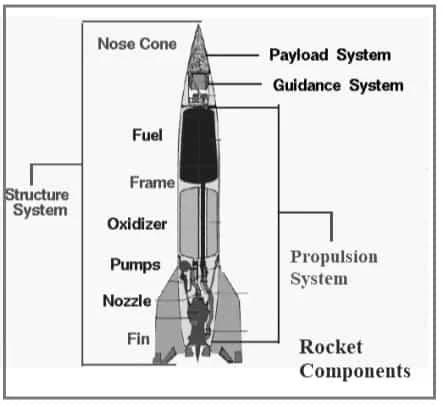

Space Rocket parts
Space rockets are complex vehicles designed to transport payloads into space.
The space rocket components are broadly classfied into structure system and propulsion system.
• Structure system : They provide support and integrity to the entire rocket,
enduring forces experienced during launch and flight. The airframe, fins, and other structural elements are designed to
handle aerodynamic loads, vibrations, and other stresses.
• Propulsion system : The propulsion system includes the rocket engines, propellant tanks, and the plumbing
and valves that control the flow of propellants to the engines.
Image Courtesy : NASA, Glenn Research Center
These two systems consist of various components. Let us understand specific functions and working principles
of these space rocket parts.
• Nose Cone: It is known as the payload fairing, that protects the payload (satellite or spacecraft)
during the rocket's ascent through the Earth's atmosphere. It shields the payload from aerodynamic forces, heat, and potential debris.
• Payload: This is the primary reason for the rocket's mission. It can be a satellite, scientific instruments, crewed spacecraft,
or any other object intended for deployment in space. The payload is securely housed within the rocket, and once in space,
it is deployed or activated to perform its specific mission.
• Guidance System:
Function: The guidance system determines the rocket's position and velocity and calculates adjustments needed to follow the planned trajectory.
Working: Sensors collect data on the rocket's position, and onboard computers process this information to make real-time adjustments to control systems, ensuring the rocket follows its intended path.
• Fuel:
Function: Fuel provides the energy needed for the combustion process in the rocket engine, producing thrust for propulsion.
Working: The fuel, which can be in liquid or solid form, undergoes combustion with an oxidizer in the rocket engine's combustion chamber, releasing energy in the form of hot gases.
• Frame (Airframe):
Function: The frame provides structural support for all the rocket's components and payloads, ensuring integrity during launch and flight.
Working: The frame is designed to withstand aerodynamic forces, vibrations, and other stresses experienced during launch and ascent.
• Oxidizer:
Function: The oxidizer is a component of the propellant that provides the necessary oxygen for the combustion of the rocket's fuel.
Working: In liquid rocket engines, the oxidizer is stored in a separate tank from the fuel and is mixed with the fuel in the combustion chamber, allowing for controlled and efficient combustion.
• Pumps:
Function: Pumps are part of the rocket propulsion system and are responsible for delivering fuel and oxidizer to the combustion chamber at the required flow rates.
Working: Pumps are typically powered by the combustion process itself or external sources, ensuring a steady and controlled supply of propellants to the rocket engines.
• Nozzle:
Function: The rocket nozzle accelerates the exhaust gases produced during combustion to high velocities, generating thrust.
Working: The nozzle is designed to efficiently expand the exhaust gases, converting thermal energy into kinetic energy and directing the high-speed gases in a specific direction to produce thrust.
• Fin:
Function: Fins provide aerodynamic stability and control during the rocket's flight through the Earth's atmosphere.
Working: Fins help stabilize the rocket, preventing it from veering off course. They are typically located near the base of the rocket.
Rockets are equipped with systems to transmit telemetry data back to ground control, allowing engineers to monitor the vehicle's status. Communication systems also enable commands to be sent to the rocket during its mission.
These components work together to enable a space rocket to deliver its payload to its desired destination in space. The specific design and configuration of these components can vary depending on the type and purpose of the rocket.
Benefits and Applications of Space rockets
Space rockets have a wide range of benefits and applications, contributing to scientific exploration, technological advancements, national security, and commercial activities. Here are some key benefits and applications of space rockets.
1. Rockets enable the launch of satellites, space probes, and telescopes that gather data for scientific research,
such as studying the Earth's climate, exploring other planets and moons, and observing distant celestial objects.
2. Rockets are essential for carrying astronauts and their equipment into space.
3. Rockets launch communication satellites into geostationary or other orbits, providing global coverage for television, radio, internet, and telecommunications services.
4. Rockets deploy satellites that form the basis for GPS navigation.
5. Satellites launched by rockets gather data for Earth observation, environmental monitoring etc.
6. Military and intelligence agencies use rockets to launch reconnaissance satellites for monitoring
and gathering intelligence on global events. Rockets contribute to the deployment of secure communication satellites.
7. Rockets are being developed for commercial space tourism, allowing private individuals to experience space travel.
Conclusion
The structure and parts of a space rocket are carefully engineered to achieve the extraordinary feat of space exploration. Understanding how each component functions reveals the complexity and innovation behind rocket design. By examining the roles of each part, we gain insight into the advanced technology that drives successful launches, propelling us closer to uncovering the mysteries of the universe.
