IC 741 Op-Amp application notes | pin diagram of ic 741

The 741 is a commonly used and well known IC which is an operational amplifier (op-amp). It is a electronic component used in wide range of analog circuit applications. Let us explore pin diagram of IC 741 and its application notes with circuit diagrams.

The 741 IC is designed to amplify the difference in voltage between its two input terminals (inverting and non-inverting). It produces output voltage based on its amplification factor or gain. The 741 op-amp has high input impedance and low output impedance. It is used for various tasks such as amplifying weak signals, adding or substracting voltage levels, buffering and more.

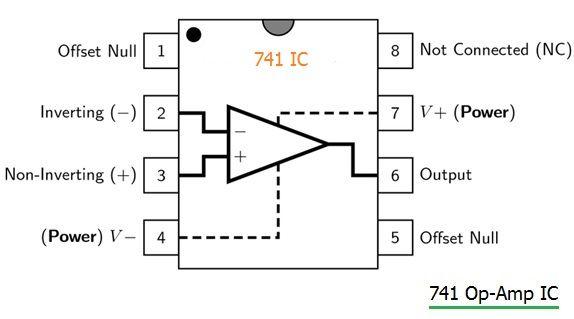

741 ic pin diagram

The 741 op-amp comes in 8-pin dual in line package (DIP). It requires dual power supplies. Common supply voltages range around +/-5V to +/-18V.

741 Op-Amp IC
741 pin Number Description
1 Offset Null
2 Inverting (-)
3 Non-inverting(+)
4 Power(V-)
5 Offset Null
6 Output
7 Power(V+)
8 NC (Not Connected)

Op-amp circuit diagrams

Let us learn Op-amp circuits which functions as buffer, differentiator, integrator, summing amplifier, differential amplifier and filters (e.g. LPF, HPF) etc.

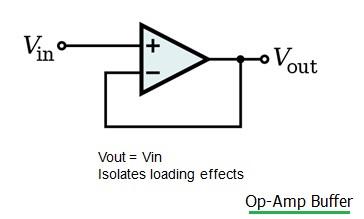

Op-Amp Buffer circuit

Op-Amp Buffer

The buffer circuit is used to isolate or buffer stages of a electronic circuit. It provides high input impedance and low output impedance.

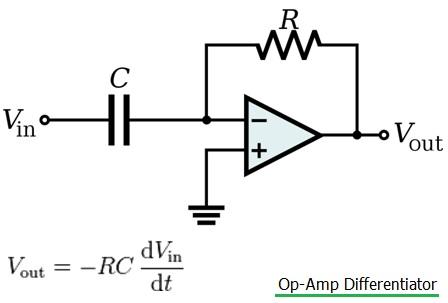

Op-Amp differentiator circuit

Op-Amp differentiator

This circuit performs mathematical differentiation on input signal. It is used where rate of change of signal needs to be emphasized.

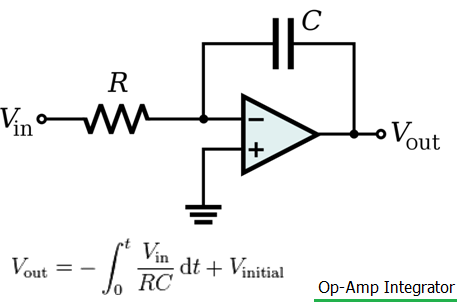

Op-Amp integrator circuit diagram

Op-Amp Integrator

It performs mathematical integration on input signal. It is used in applications such as waveform generation and signal integration.

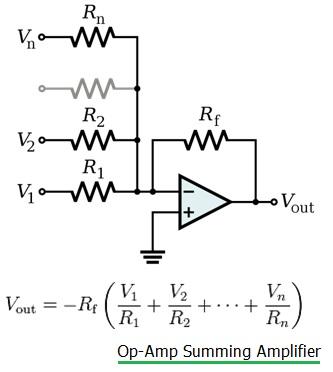

Op-Amp Summing Amplifier circuit

Op-Amp summing amplifier

This op-amp circuit combines multiple input signals each with its own scaling factor. It produces sum of all the input signals. It is used for audio mixing.

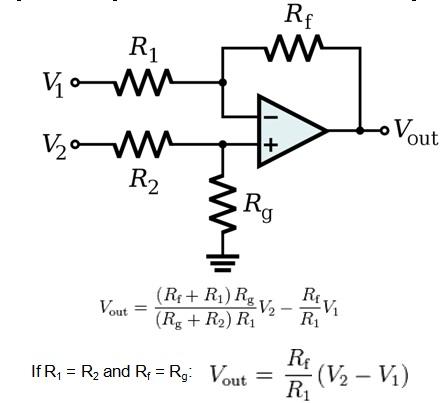

Op-Amp differential Amplifier circuit

Op-Amp differential amplifier

It amplifies difference between input signals. It is mainly used where noise rejection is crucial such as instrumentation amplifiers.

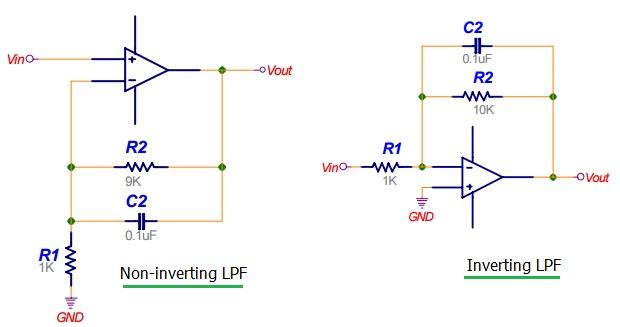

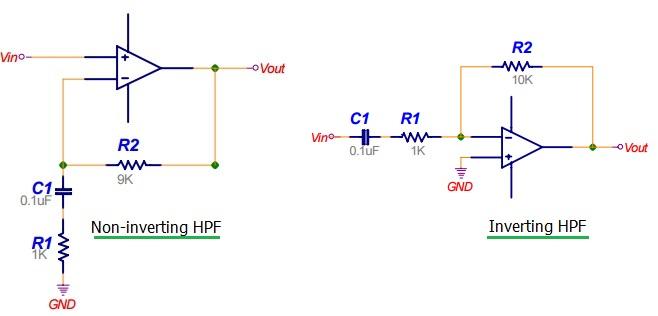

Op-Amp Low Pass Filter and High pass filter circuits

Op-Amp LPF Op-Amp HPF

As shown, Op-amps are used to make active filters of different types such as low pass and high pass. It can also be used to create band pass and band reject filters. They are used in signal processing and communication circuits.

The above mentioned circuits are few applications of op-amps. The versatility of op-amps makes them fundamental components in analog electronics. This allows engineers to design op-amp circuits that perform a wide variety of functions.
