Magnetron calculator

This page of converters and calculators section covers Magnetron calculator. The calculator calculates Hull cutoff potential and Hartee potential.

Cathod radius (input1) in meter :

Anode radius (input2) in meter :

Magnetic Field in Wb/m2 :

Tuning Frequency in GHz :

Number of Resonators :

Magnetron Hull Cutoff Potential (Output1):

Magnetron Hartree Potential (Output2):


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE:
INPUTS : cathod radius= 0.0025,anode radius= 0.005 , magnetic field = 0.27 , Frequency = 2.95 , no. of resonators= 8
OUTPUTS: Maximum Hull potential = 22.5 KV , Hartree potential = 11.7 KV

Magnetron Equation

As we know tube devices used for microwave signal generation and microwave signal amplification can be broadly categorized into linear beam and cross field. Magnetron falls under cross field categoty. Following equation or formula is used for Magnetron calculator.

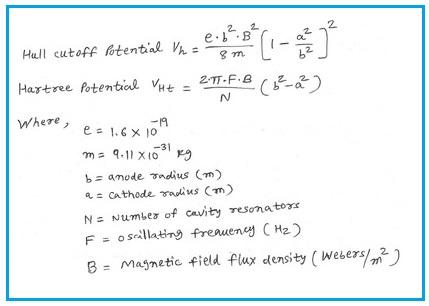

Magnetron calculator equation
