Simple FFT Labview VI source code

This page of labview source code covers simple FFT labview vi which generates fast fourier transform of the input complex data.It provides link to download labview VI source code. For more information on FFT basics, refer FFT page.

FFT Labview VI Block Diagram

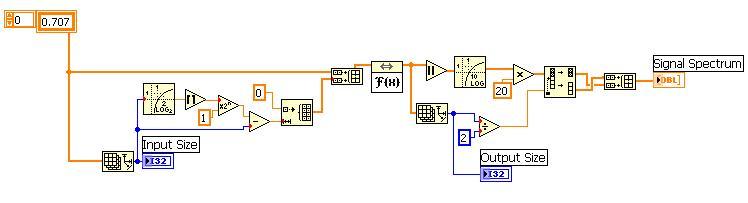

Following fig-1 mentions block diagram of simple FFT labview vi.


FFT labview vi block diagram

FFT Labview VI Front Panel

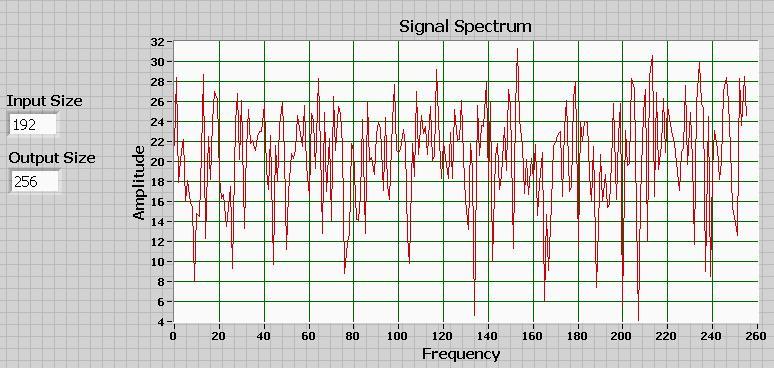

Following fig-2 mentions front panel of FFT labview vi.


FFT labview vi front panel

Download FFT Labview code

Download FFT labview vi source code file.

Useful Links to Labview Source codes

Refer following as well as links mentioned on left side panel for useful labview source codes.

Hex to Binary labview VI      Decimal to Binary labview VI
Number Generator labview VI      Binary to Decimal labview VI
Binary number generator     modulator-demodulator
FFT     up and down sample
