4-Bit BCD Synchronous Reset Counter VHDL Code

This page provides the VHDL source code for a 4 Bit BCD (Binary Coded Decimal) Synchronous Reset Counter. We’ll also look at the block diagram and truth table to understand its functionality.

Block Diagram and Truth Table

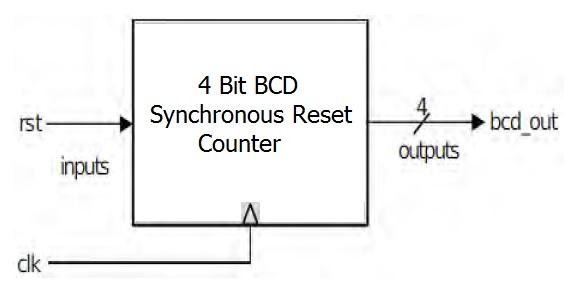

Here’s the block diagram illustrating the counter’s structure:

Image Alt Text: 4 Bit BCD Synchronous Reset Counter Block Diagram

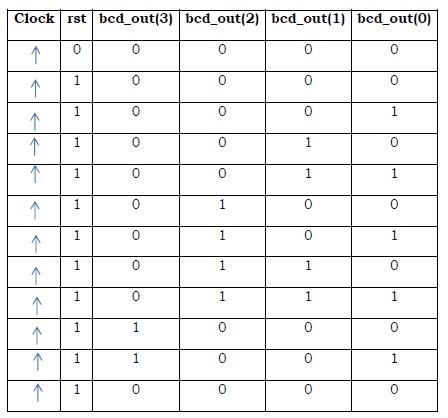

And this is the truth table showing its counting sequence:

Image Alt Text: 4 Bit BCD Synchronous Reset Counter Truth Table

4 Bit BCD Synchronous Reset Counter VHDL Code

Here’s the VHDL code implementing the 4-bit BCD synchronous reset counter:

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;

entity bcd_syn is
    port (
        clk, rst: in std_logic;
        bcd_out: out std_logic_vector(3 downto 0)
    );
end bcd_syn;

architecture behavioral of bcd_syn is
    signal div: std_logic_vector(22 downto 0);
    signal clkdiv: std_logic;
begin
    process (clk)
    begin
        if rising_edge(clk) then
            div <= div + 1;
        end if;
    end process;

    clkdiv <= div(22);

    process (clkdiv)
        variable temp: std_logic_vector(3 downto 0);
    begin
        if (rising_edge(clkdiv)) then
            if (rst = '0' or temp = "1001") then
                temp := "0000";
            else
                temp := temp + '1';
            end if;
        end if;
    end process;

    bcd_out <= temp;

end behavioral;

Explanation:

• Library Declarations: The code starts by including necessary libraries like ieee.std_logic_1164 for standard logic types, ieee.std_logic_arith and ieee.std_logic_unsigned for arithmetic operations on standard logic vectors.
• Entity Declaration: The entity bcd_syn defines the interface of the counter. It has two input ports: clk (clock) and rst (reset), both of type std_logic. The output port bcd_out is a 4-bit standard logic vector representing the BCD output.
• Architecture Declaration: The architecture behavioral of bcd_syn describes the behavior of the counter.
• Clock Division: The first process divides the input clock (clk) using a 23-bit counter (div). The most significant bit (div(22)) is used as the divided clock signal clkdiv. This is likely done to slow down the counting for testing or specific application requirements.
• BCD Counting Logic: The second process is sensitive to the rising edge of the divided clock clkdiv. It uses a variable temp of type std_logic_vector(3 downto 0) to store the current BCD count.
  • Reset and Roll-Over: If the reset signal rst is ‘0’ (active low reset) or if the current count temp is “1001” (9 in decimal), then temp is reset to “0000”. This ensures that the counter counts from 0 to 9 and then rolls over to 0.
  • Incrementing the Count: If the reset is not active and the count is not 9, the temp variable is incremented by 1 (temp := temp + '1';).
• Output Assignment: Finally, the bcd_out signal is assigned the value of the temp variable, providing the BCD output.
