Asynchronous FIFO verilog code | Asynchronous FIFO Test Bench

This page covers Asynchronous FIFO verilog code and mentions Asynchronous FIFO test bench script. It mentions simulated output of Asynchronous FIFO verilog code.

Asynchronous FIFO design

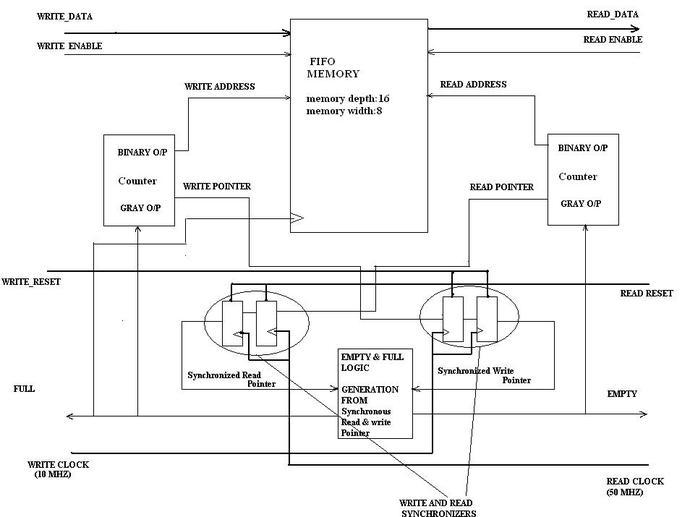

The figure-1 depicts asynchronous FIFO design.

Asynchronous FIFO simulation

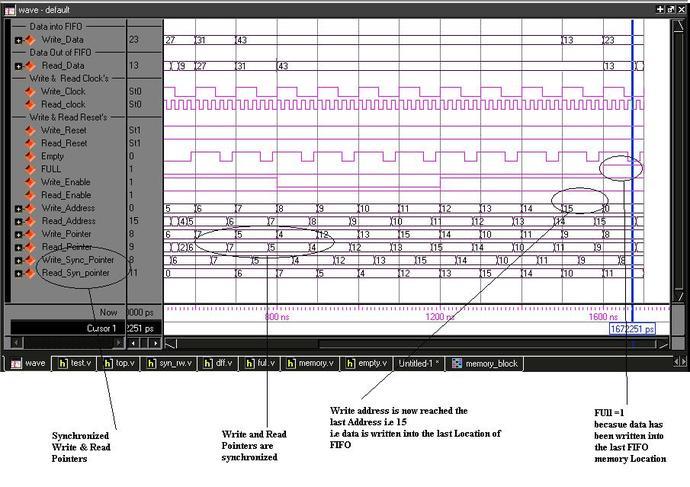

The figure-2 depicts simulation output of Asynchronous FIFO logic shown in figure-1 above.

Asynchronous FIFO verilog code

Following is the Asynchronous FIFO verilog code.

module tb_top();
reg wr_clk,rd_clk;
reg[7:0] data_in;
wire[7:0] data_out;
wire rd_empty,wr_full;
reg reset_w;
reg reset_r;
reg write_enable,read_enable;
top top_1(.wr_data(data_in),
.rd_data(data_out),
.wr_clk(wr_clk),
.rd_clk(rd_clk),
.w_reset(reset_w),
.r_reset(reset_r),
.write_enable(write_enable) ,
.read_enable(read_enable),
.empty(rd_empty),
.full(wr_full));
initial
begin
#0data_in=8'h0;
#50_000 data_in=8'b00000001; // DATA WHICH IS SUPPLIED
#80_000 data_in=8'h2;
#70_000 data_in=8'h3;
#79_000 data_in=8'h4;
#80_000 data_in=8'h5;
#40_000 data_in=8'h6;
#60_000 data_in=8'h7;
#50_000 data_in=8'h8;
#50_000 data_in=8'h9;
#20_000 data_in=8'h10;
#70_000 data_in=8'h11;
#80_000 data_in=8'h12;
#19_000 data_in=8'h13;
#10_000 data_in=8'h14;
#80_000 data_in=8'h15;
end
initial
begin
wr_clk=1'b0;
write_enable=1'b0;

read_enable=1'b0;
end
initial
always
#50000 wr_clk=~wr_clk; //end // READ AND WRITE CLOCK GENERATION
rd_clk=1'b0;
initial
begin
always
#10000 rd_clk=~rd_clk;
end
initial
reset_r=1'b0;
begin
initial
#5000 reset_r=1'b1;
//end
initial
reset_w =1'b0;
initial
#5000 reset_w=1'b1;
initial
#5000 write_enable=1'b1;
initial
# 50000 read_enable=1'b1;
initial
begin
#1000000000 $finish; end
initial
$monitor( "$time data_out,empty ,full= %d %d %d",data_out,rd_empty,wr_full);
endmodule


Asynchronous FIFO test Bench

Asynchronous FIFO test bench

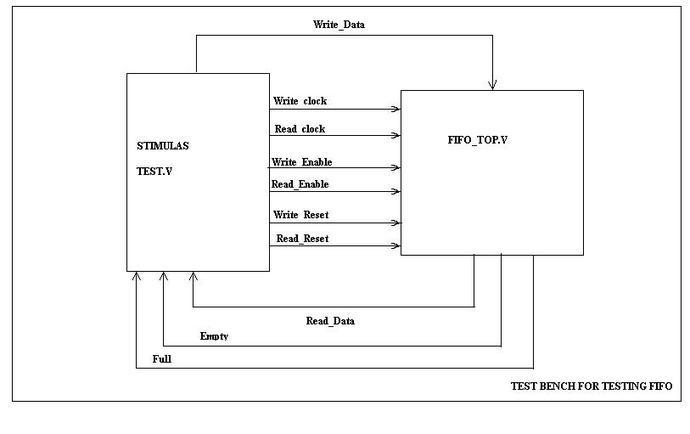

Above figure-3 depicts Asynchronous FIFO Test bench.


Following is the pdf which describes all the modules used in this Asynchronous FIFO.
