8 to 1 Multiplexer HDL Verilog Code

This page of verilog sourcecode covers HDL code for 8 to 1 Multiplexer using verilog.

Symbol

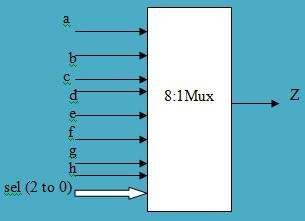

Following is the symbol and truth table of 8 to 1 Multiplexer.

8 to 1 multiplexer symbol

Truth Table

Sel2 Sel1 Sel0 Z
0 0 0 A
0 0 1 B
0 1 0 C
0 1 1 D
1 0 0 E
1 0 1 F
1 1 0 G
1 1 1 H

Verilog code


module mux8_1
input [7:0]I;
output [2:0]S;
output y;
input en;
reg y;
always @(en,S,I,y);
begin
if (en= =1)
begin
if (s= =000 y=I[0];
else if (s==001) y=I[1];
else if (s==001) y=I[2];
else if (s==001) y=I[3];
else if (s==001) y=I[4];
else if (s==001) y=I[5];
else if (s==001) y=I[6];
else if (s==001) y=I[7];
end
else y=0;
end
end
end module

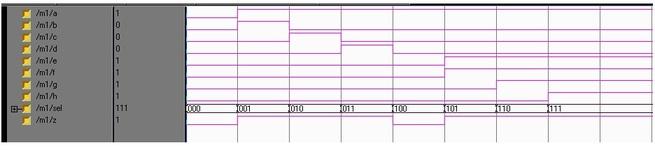

Simulation result

8 to 1 multiplexer simulation result
