plotting in matlab

This page covers plotting functions of 2D and 3D curves in matlab. It covers plot and plot3 functions.

plot and plot3 matlab code

clc;clear all;close all;
x=[1 2 3 4 5 6 7 8 9 10];
y=[0.1 0.2 0.3 0.4 0.5 0.35 0.25 0.15 0.05 0.02];
z=[10 20 30 40 50 60 70 80 90 100];
figure;plot(x,y);
figure;plot3(x,y,z);

Another plot3 code

clc;clear all;close all;
t=linspace(0,1,1000);
x=t;
y=t.^2;
z=t.^3;
plot3(x,y,z);

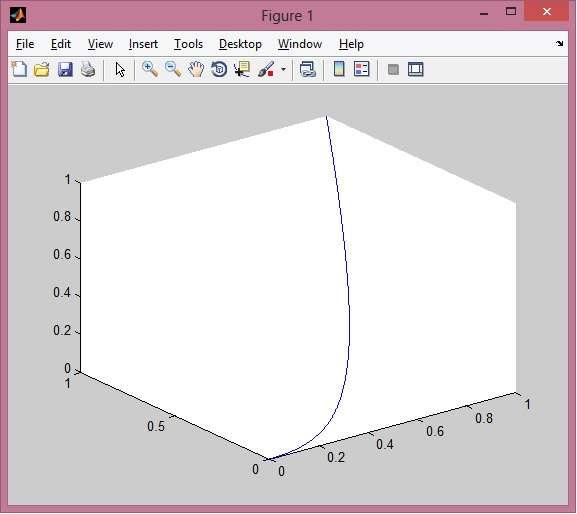

Output

plot3D matlab

The other matlab function is stem3(x,y,z) to plot in 3D.
