CCDF MATLAB code

CCDF curve is very useful for RF engineers to take care of PAPR of the time domain signal while designing RF Power amplifier.

To know basics on CCDF, Refer CCDF page in terminology section.

Source code

Download CCDF matlab file

Another way of plotting CCDF

load file_td_data;
rx_data = time_domain_data_vector;
rx1_data=abs(rx_data).^2;
ccdf_avg=mean(rx1_data);
ccdf_IA=sort(rx1_data,'descend');
ccdf_IAR=ccdf_IA./ccdf_avg;
figure;
plot(1:length(rx_data),10*log10(ccdf_IAR),'r.');
title('CCDF PLOT');xlabel('time in sec');ylabel('PAPR');

Download mat file with name file_td_data to load time_domain_data_vector.

file_td_data

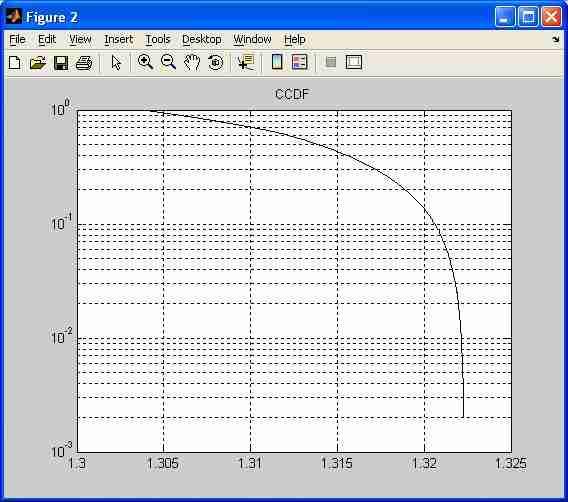

CCDF curve in MATLAB code output

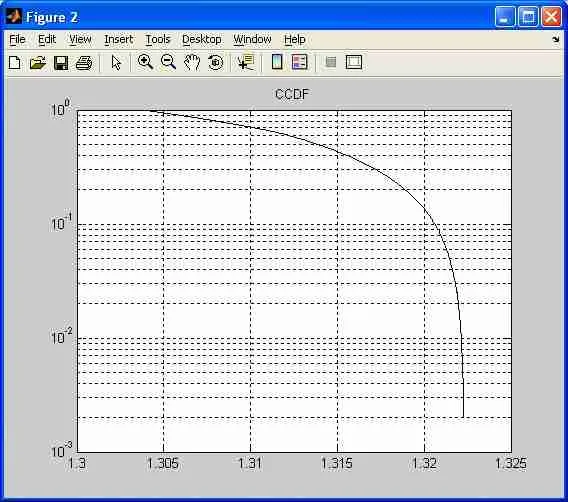

Select 2 as modulation type while you run the matlab code, following CCDF curve gets plotted for the time domain data.

CCDF Curve
