BPSK QPSK 16QAM 64QAM MATLAB source code

This section of MATLAB source code covers BPSK,QPSK,16QAM and 64QAM modulation or data mapping matlab code.

This page covers modulation or mapping of binary data based on modulation type bpsk,qpsk,16qam and 64qam. It plots the constellation diagram for the same.


Setting up parameters for modulation matlab code

% Setting up parameters for modulation type
data = randint(1000,1,[1,0]); % generating binary data of 1000 bits with ones and zeros
mod_type=input('Enter the modulation type[1 for BPSK,2 for QPSK,3 for 16QAM,4 for 64QAM]: ');
norm_factor=[1.0;0.7071;0.3162;0.1543]; % normalization factors, 1.0:BPSK,0.7071:QPSK,0.3162:16QAM,0.1543:64QAM
nc=[1;2;4;6]; % number of bits per subcarrier, 1:BPSK,2:QPSK,4:16QAM,6:64QAM
input_seq = data;
k=norm_factor(mod_type);
mode=nc(mod_type);

Modulation matlab code

% Selecting constellation point as per modulation type
switch mode
case 1
b=k*[1 -1];
case 2
b=k*[1+1i -1+1i 1-1i -1-1i];
case 4
b=k*[1+1i 1+3i 1-1i 1-3i 3+1i 3+3i 3-1i 3-3i -1+1i -1+3i -1-1i -1-3i -3+1i -3+3i -3-1i -3-3i];
case 6 b=k*[3+3i 3+1i 3+5i 3+7i 3-3i 3-1i 3-5i 3-7i 1+3i 1+1i 1+5i 1+7i 1-3i 1-1i 1-5i 1-7i 5+3i 5+1i 5+5i 5+7i 5-3i 5-1i 5-5i 5-7i 7+3i 7+1i 7+5i 7+7i 7-3i 7-1i 7-5i 7-7i -3+3i -3+1i -3+5i -3+7i -3-3i -3-1i -3-5i -3-7i -1+3i -1+1i -1+5i -1+7i -1-3i -1-1i -1-5i -1-7i -5+3i -5+1i -5+5i -5+7i -5-3i -5-1i -5-5i -5-7i -7+3i -7+1i -7+5i -7+7i -7-3i -7-1i -7-5i -7-7i];
end

count=1;
count1=1;

for i=1:(ceil(length(input_seq)/mode))
temp=0;
for j=1:mode
temp=bitor(temp,bitshift(input_seq(count),(j-1)));
count=count+1;
if(count>length(input_seq))
break;
end
end
map_out(count1)=b(temp+1);
count1=count1+1;
end
figure;plot(real(map_out),imag(map_out),'r.');title('constellation');


Input in the MATLAB Window

modulation matlab code

Output in the MATLAB Window

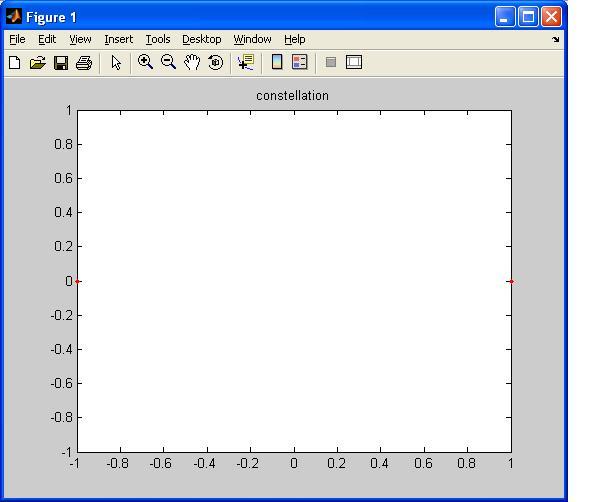

BPSK MATLAB OUTPUT
BPSK constellation

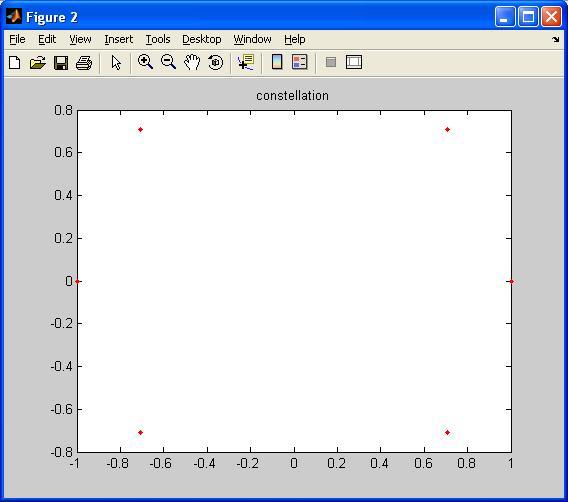

QPSK MATLAB OUTPUT
QPSK constellation

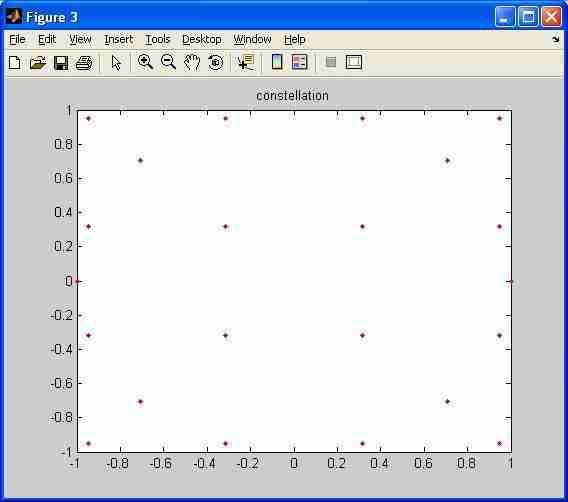

16QAM MATLAB OUTPUT
16QAM constellation

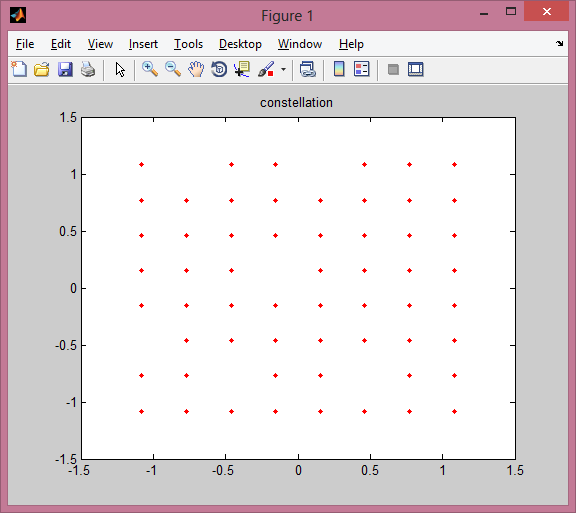

64QAM MATLAB OUTPUT
64QAM constellation
