Slotline Calculator

This page of converters and calculators section covers slotline calculator. The calculator calculates effective dielectric constant and guide wavelength.

Relative Dielectric Constant (input1) :

Frequencyof operation in GHz (input2) :

Effective dielectric constant (Output1):

Guide wavelength in meters (Output2):


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE:
INPUTS : Relative Dielectric Constant = 4.6 , Frequency(GHz) = 10
OUTPUTS: Effective dielectric constant = 2.8 , Guide wavelength= 0.02 m


Slotline Equation

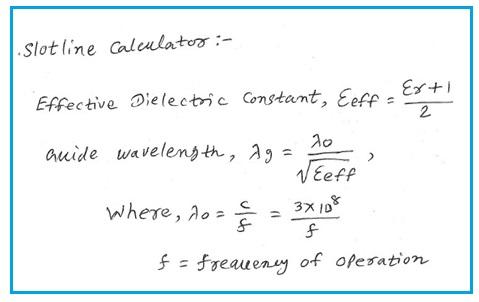

Following equation or formula is used for slotline calculator.

slotline calculator equation
