Satellite Slant Range Calculator

This page of converters and calculators section covers Satellite Slant Range calculator. The distance of satelite from Ground station i.e. Altitude, Distance between geocenter and GND Station i.e. Earth radius and Earth station elevation angle are inputs to this slant range calculator. The output is slant range.

Distance between GND Station & satellite (Altitude), Km (input1) :

Distance between geocenter & GND Station, Km (input2) :

Elevation Angle in degree (input3) :

Satellite Slant Range in Km (Output1):


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

Slant Range Calculator EXAMPLE:
INPUTS:
Distance between GND Station & satellite (i.e. Altitude), h (Km) = 35786 Km
Distance between geocenter & GND Station, B (Km) = 6378 Km
Elevation Angle in degree, ε = 90
Note: Internally distance between Geocenter and Satellite (r) is sum of altitude(h) and Earth radius(B).
OUTPUTS:
Satellite Slant Range in Km = 35786


Satellite Slant Range calculator Equation

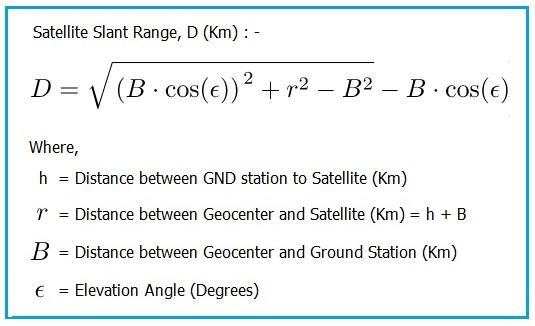

Following equation or formula is used for Satellite Slant Range Calculator.

slant range

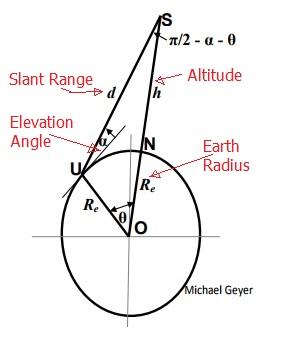

The figure-1 depicts slant range and other parameters used in this satellite slant range calculator.

slant range calculator equation
