RF Pad calculator | Formula for RF Pad Calculator

This page covers RF Pad calculator. The formula used in RF Pad calculator is also mentioned.

RF Pad calculator-π-Type

Following calculator calculates resistor values for the attenuator pad having shape of 'π'.

Impedance in Ohms (input1) :

Attenuation in dB (input2) :

R1 and R2 are (output 1 and 2) :

R3(output 3) :


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE of RF Pad calculator (PI-Type):
INPUTS: Impedance = 50 , Attenuation = 3dB
OUTPUTS: R1=R2= 16.6 (take standard 18 value), R3 = 66.9 (take standard 66.5 value )

RF Pad calculator-T-Type

Following calculator calculates resistor values for the attenuator pad having shape of 'T'.

Impedance in Ohms (input1) :

Attenuation in dB (input2) :

R1 and R3 are (output 1 and 3) :

R2(output 2) :


EXAMPLE of RF Pad calculator (T-Type):
INPUTS: Impedance = 50, Attenuation = 9dB ;
OUTPUTS: R1=R3 = 64.4 and R2 = 195.43

Formula/Equation used in RF Pad calculator

Following formula/equation is used in this RF Pad calculator.

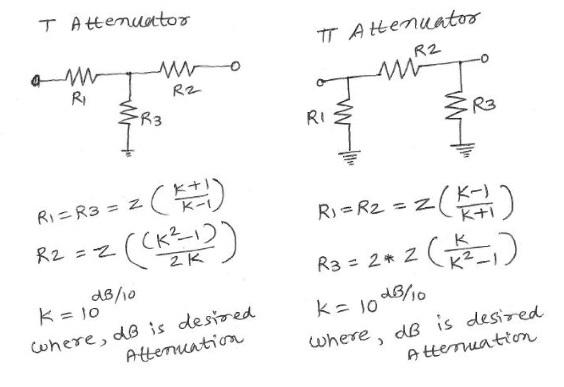

rf pad formula

This equations are used for the RF attenuator pad calculators having shape of PI and T as mentioned above.
