reflex klystron Calculator

This page of converters and calculators section covers reflex klystron calculator. It calculates output power,repeller voltage and efficiency of reflex klystron.

Frequency of operation (input1) :

DC Beam Voltage in Volt (input2) :

DC Beam current in mA (input3) :

Mode of operation (input4) :

Repeller Spacing in meter (input5) :

Output Power in Watt (Output1):

Repeller Voltage (Output2):

Electronic Efficiency (Output3):


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE:
INPUTS: Frequency(GHz)=10, Beam voltage(V)=300, Beam current(mA) = 15, Repeller spacing(meter) = 0.001 (=1mm) , Mode = 2.75 ( = 11/4)
OUTPUTS: Power =0.651 Watt, Repeller Voltage=124.5 V , Efficiency = 14.47

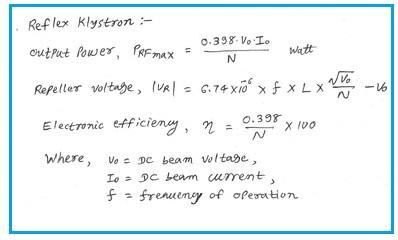

Reflex klystron Equation

Following equation or formula is used for reflex klystron calculator.

reflex klystron calculator equations
