PRF to Range converter


This tutorial section on radar basics covers following sub topics:
Main Page   Terminology   Measurements   Doppler Radar   FMCW RADAR   BANDs   RADAR SCOPE   Weather Radar   Ground radar   RANGE and RESOLUTION   Range calculator


This page of converters and calculators section covers radar Pulse Repetitive frequency (PRF) to maximum unambiguous range and vice versa converter.

PRF (Pulse Repetitive Frequency) in Hz (input1) :

Unambiguous Range in meters (Output1):


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE:
PRF = 800 Hz
Max. Unambiguous Range = 187.5 Km


Range to PRF converter

Unambiguous Range in meters (input1) :

PRF (Pulse Repetitive Frequency) in Hz (output1):


EXAMPLE:
Range = 300E03 meter
PRF = 500 Hz

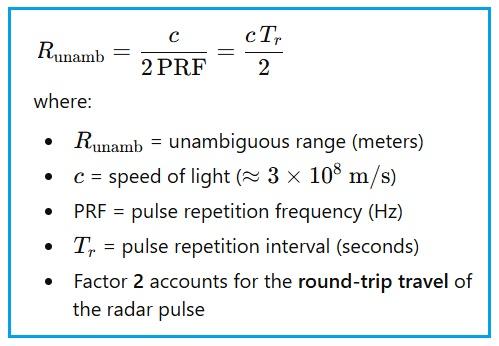

Radar PRF Equation

Following equation or formula is used for radar PRF to unambiguous range converter.

radar PRF to maximum unambiguous range converter
