Multimode fiber Calculator | dispersion,bandwidth Formula

This page covers Multimode fiber Calculator. The calculator calculates dispersion and bandwidth. The formulas are also mentioned.

modal dispersion, ns/km (input1) :

length of fiber, km (input2) :

chromatic dispersion, ns/km per nm (input3) :

LED linewidth, nm (input4) :


Total dispersion (Output1):

Fiber Bandwidth (Output2):

Example:
INPUTS :
modal dispersion (ns/km) = 1 , fiber length (km) = 2, chromatic dispersion (ns/km*nm) =0.1, LED linewidth (nm) = 40
OUTPUTS:
Total dispersion= 8.24; Fiber Bandwidth = 42.44 MHz


dispersion and bandwidth formula

Following equations or formula are mentioned for this Multimode fiber Calculator.

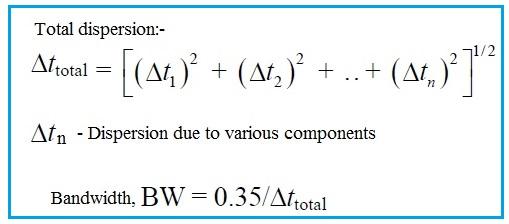

fiber total dispersion and bandwidth formula
