Interdigital capacitor calculator

This page of converters and calculators section covers Interdigital capacitor calculator.

Substrate dielectric constant (input1) :

Number of fingers (input2) :

Finger length in cm (input3) :

Finger base width in cm (input4) :

capacitance of interdigital capacitor in pF/cm (output) :


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE:
Dielectric constant = 9.8 , Number of fingers=10, finger length = 0.0025 cm , finger width = 0.05 cm
Capacitance = 0.4 pF/cm


Interdigital Capacitor Equation

interdigital capacitor

As depicted in the fig-1 and equation mentioned below, interdigital capacitor do not require any special steps. It is similar to MIC technology. Capacitance value of this interdigital capacitor depends on W/L ratio, gap distance 'd' between two conductors as well as number of fingers N.

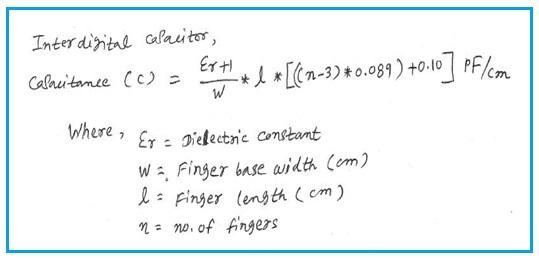

Following equation or formula is used for Interdigital capacitor calculator.


interdigitated capacitor calculator
