UARFCN calculator | UARFCN to Frequency calculator

This page UARFCN calculator of converters and calculators section performs UMTS UARFCN to Frequency conversion.It mentions UARFCN calculator equation. This UMTS system based UARFCN calculator covers UMTS band 1 to band 26 under FDD topology. It takes Downlink UARFCN as input and delivers Downlink Frequency, Uplink UARFCN and Uplink Frequency as the outputs.

UMTS Downlink UARFCN (input) :

UMTS Downlink Frequency in MHz (Output1):

UMTS Uplink Frequency in MHz(Output2):

UMTS Uplink UARFCN (Output3):


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

UARFCN calculator EXAMPLE:
Input : UMTS Downlink UARFCN = 10570
Outputs: UMTS Downlink Frequency (MHz) = 2114 ,
UMTS Uplink Frequency (MHz) = 1924,
UMTS Uplink UARFCN = 9620


UMTS Frequency to UARFCN calculator Equation

In UMTS, UARFCN stands for UTRA Absolute Radio Frequency Channel Number. Similar to GSM ARFCN, UARFCN is used to simplify the radio frequency planning and maintenance process in the UMTS networks. UARFCN is the easy way of representing frequency pairs (uplink and downlink) in the UMTS system. In this UARFCN calculator, just provide UARFCN value and it will calculates rest of the useful parameters. Following equation or formula is used for UMTS UARFCN Calculator for UARFCN to frequency conversion and vice versa.

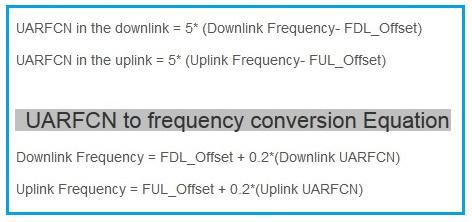

UMTS UARFCN Calculator Equation
