Spurious Free Dynamic Range- SFDR Calculator

This page of converters and calculators section covers SFDR (Spurious Free Dynamic Range) calculator.

Third Order Intercept Point (IIP3) (input1) :

Minimum Detectable Signal (MDS) (input2) :

Spurious Free Dynamic Range (SFDR) (Output) :


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE:
INPUTS:IIP3 = 10 , MDS = -119
OUTPUT: SFDR = 86 dB


SFDR Equation

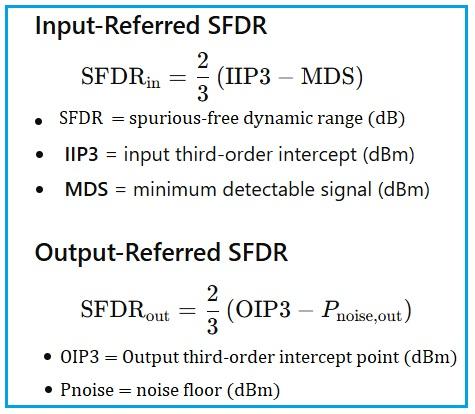

Following equation or formula is used for Spurious Free Dynamic Range or SFDR calculator.

SFDR,Spurious Free Dynamic Range equation
