Reflection Coefficient to SWR Converter

This page of converters and calculators section covers Reflection Coefficient to SWR Converter and viceversa.

Reflection coefficient (input) :

Standing Wave Ratio (SWR)(output) :


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

SWR to Reflection coefficient Converter

SWR (Input) :

Reflection coefficient (output):

EXAMPLE:
Reflection Coefficient = 0.2
SWR = 1.5
Hence VSWR = 1.5: 1

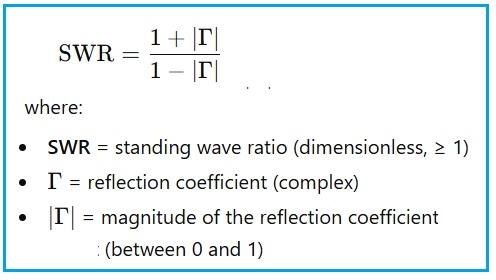

Reflection coefficient to SWR Equation

Following equation or formula is used for Reflection Coefficient to SWR Converter and viceversa.

Reflection coefficient to SWR converter
