Intermediate Frequency Calculator | Intermediate Frequency formula

This page covers Intermediate Frequency calculator. It mentions Intermediate Frequency formula or equation. The Intermediate Frequency (IF) definition along with its benefits or advantages are also described.

What is Intermediate Frequency?

This term is widely used in electronic and communication engineering in up conversion and down conversion stages involving heterodyne architecture. It is the frequency to which carrier wave is shifted as intermediate step frequency for transmission and reception.

➨The IF (Intermediate Frequency) is generated by mixing two frequencies viz. Input frequency (Fin1 or Fin2) and Local Oscillator frequency ( FLO1 or FLO2).
➨Fin1 and FLO1 are provided to RF Mixer to generate FIF1 as sum of these two frequencies during up conversion process. Check figure-2 below.
➨Fin2 and FLO2 are provided to RF Mixer to generate FIF2 as difference of these two frequencies during down conversion process.

The Intermediate frequency concept is applied in RF transceivers used for various wireless systems. Refer Upconverter vs Downconverter and RF Transceiver design to understand RF Up conversion and downconversion process.

The intermediate frequency for AM receiver is 455 kHz and for FM receiver it is 10.7 MHz.

Benefits of Intermediate Frequency

rf upconverter downconverter

Following are the benefits or advantages of Intermediate frequency.
➨Signal processing at lower frequency is easier.
➨It is easy to design filters at lower frequencies.
➨Lower frequency transistors provide higher gains.
➨It makes overall system cost cheaper due to less expensive components at lower frequencies.

Intermediate Frequency Calculator for Up converter

Frequency input, MHz (input1) :

LO Frequency, MHz (input2) :


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUT.

Intermediate Frequency, MHz (Output) :

EXAMPLE of Intermediate Frequency calculator #1:
INPUTS: Fin1 = 70 MHz, FLO1= 1112.5 MHz
OUTPUT: FIF1 = 1182.5 MHz

Intermediate Frequency Calculator for Down converter

Frequency input, MHz (input1) :

LO Frequency, MHz (input2) :


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUT.

Intermediate Frequency, MHz (Output) :

EXAMPLE of Intermediate Frequency calculator #2:
INPUTS: Fin2 = 3700 MHz, FLO2= 4680 MHz
OUTPUT: FIF2 = 980 MHz

The calculator#2 (for down conversion) above uses higher side local oscillator compare to RF (Radio Frequency).

Intermediate Frequency Formula or Equation

Following Intermediate Frequency formula or equations are used for this Intermediate Frequency calculator.

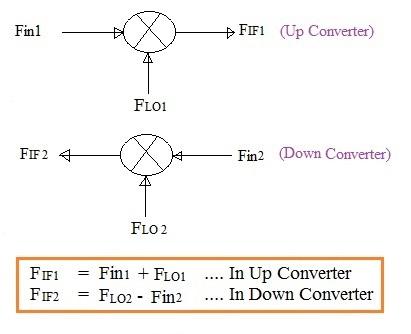

intermediate frequency formula
