ARFCN calculator | ARFCN to Frequency conversion calculator

This page ARFCN calculator of converters and calculators section performs GSM ARFCN to Frequency conversion. ARFCN calculator also calculates frequency to ARFCN.

GSM   ARFCN            (input) :

GSM UL Freq MHz (Output1):

GSM DL Freq MHz (Output2):


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE ARFCN calculator:
Input: GSM ARFCN = 100
Outputs: GSM Uplink Frequency = 910 MHz,
GSM Downlink Frequency = 955 MHz



GSM ARFCN Calculator Equation

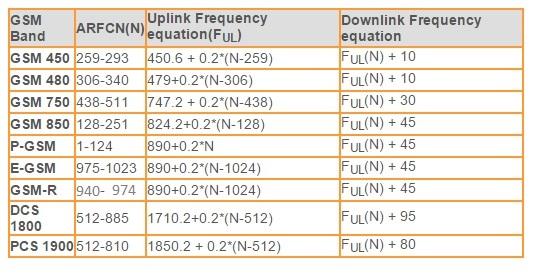

Following equation or formula is used for GSM ARFCN calculator. As mentioned in the figure, it is basically a number to represent gsm downlink-uplink frequency pair. GSM ARFCN is the short form of absolute radio frequency channel number. The concept of ARFCN is to simplify the RF frequency planning and maintenance process in GSM system.

GSM ARFCN calculator Equation
