5G NR ARFCN vs 5G NR frequency conversion calculator

This 5G NR ARFCN calculator does NR ARFCN to frequency conversion and 5G NR frequency to NR ARFCN conversion. The equations or formula for NR-ARFCN to frequency conversion and vice versa are also mentioned.

The 5G NR (New Radio) follows 3GPP specifications similar to LTE. They are specified in 38-series where as LTE are specified in 36-series. In 5G NR RF reference frequencies are designated by an NR Absolute Radio Frequency Channel Number (NR-ARFCN) on the global frequency raster. The relation between the NR-ARFCN and the RF reference frequency FREF in MHz is given by the following equation, where FREF-Offs and NRef-Offs are given in table 5.4.2.1-1 and NREF is the NR-ARFCN.

5G NR ARFCN to Frequency conversion

Following 5G NR Frequency calculator converts 5G NR-ARFCN to 5G Frequency.

5G NR ARFCN (input) :


5G Frequency, MHz (Output):

Example: 5G NR-ARFCN to Frequency conversion calculator
Input : 5G NR ARFCN = 444000
Output : 5G RF Center Frequency = 2220 MHz


5G NR ARFCN to Frequency conversion formula

Following equation or formula is used for calculation of 5G NR frequency from 5G NR ARFCN.

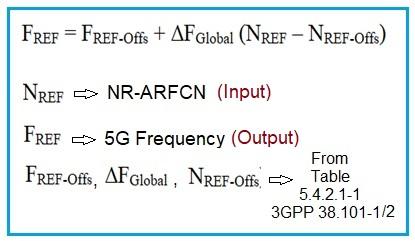

5G NR ARFCN to Frequency conversion

5G NR Frequency to NR ARFCN conversion

Following 5G NR ARFCN calculator converts 5G NR frequency to NR-ARFCN.

5G NR Frequency, MHz (input) :


5G NR ARFCN (Output):

Example: 5G NR-Frequency to 5G NR-ARFCN conversion calculator
Input : 5G NR Frequency = 2220 MHz
Output : 5G NR ARFCN = 444000


5G NR-Frequency to NR-ARFCN conversion formula

Following equation or formula is used for calculation of 5G NR ARFCN from 5G NR frequency.

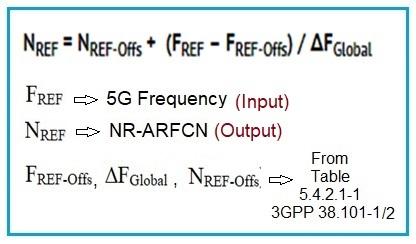

5G Frequency to NR-ARFCN Conversion

This 5G NR ARFCN calculator is based on following table and above formula specified in 3GPP TS 38.101-1 and TS 38.101-2 documents.

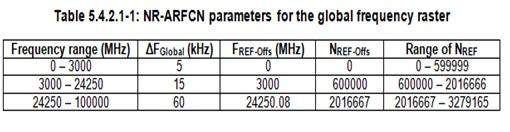

5G NR ARFCN vs frequency table

Also refer 5G NR Frequency Bands >> for more information on sub-6 GHz and millimeter wave frequency bands.
