z-wave RF PHY conformance tests for z-wave device testing


This tutorial section on z-wave basics covers following sub topics:
Main Page   PHY layer   MAC layer   protocol stack   security   conformance tests


RF and PHY conformance tests for z-wave device testing is covered here. These compliance tests are used for transmitter and receiver measurements of z-wave device.

Refer article on physical layer measurements and tutorial on RF measurements in order to understand basics of both.

Z-wave device transmitter conformance testing

Z-wave conformance tests for the transmitter part include transmit frequency error, RF data rate, modulation-code rate, transmit RF power, power adjustments etc. These transmitter tests are useful for z-wave device testing.

Transmit Frequency Error: It is defined as difference between measured transmitted centre frequency and ideal center frequency. The frequency error should not exceed +/-27ppm. This includes crystal ageing over the 5 year period.

RF Data rate: z-wave PHY layer should support following data rates with accuracy of +/-27ppm.


Rate Bit rate Symbol rate
R1 9.6 Kbps 19.2 Kbaud
R2 40 Kbps 40 Kbaud
R3 100 Kbps 100 Kbaud

Modulation Code rate: It supports (FSK,manchester) for R1 rate, (FSK,NRZ) for R2 rate, (GFSK,NRZ) for R3 rate. Allowed separation is 40 kHz+/-10% for R1 and R2 rates. Allowed separation is 58KHz +/- 10 % for R3 rate.

Transmit RF power: It is measured at the antenna connector. It should meet local regulatory requirements.

Power Adjustments: It should able to reduce at least nominal output power-20 dB.

Z-wave device receiver conformance testing

Z-wave conformance tests for the receiver part include receiver sensitivity, clear channel assessment, receiver spurious measurements, receiver blocking test, maximum input level, Tx-Rx turnaround time, Rx-Tx turnaround time etc. These receiver tests are useful for z-wave device testing.

Receiver sensitivity: The test is conducted as per standard test frame and conditions mentioned in the standard. The receiver sensitivity for different rates should meet following requirements:

Bit Rate Minimum Receiver sensitivity
R1 -95dBm
R2 -92dBm
R3 -89dBm


Clear Channel Assessment: The z-wave physical layer need to perform this test in order to determine if the medium is busy or clear for the transmission. The receiver should be able to perform 'listen before talk' with threshold of about -80dBm.

Receiver spurious measurement: The RX spurious limit is -70 dBm at 100 kHz within +/- 1 MHz from the regional Z-Wave frequency.

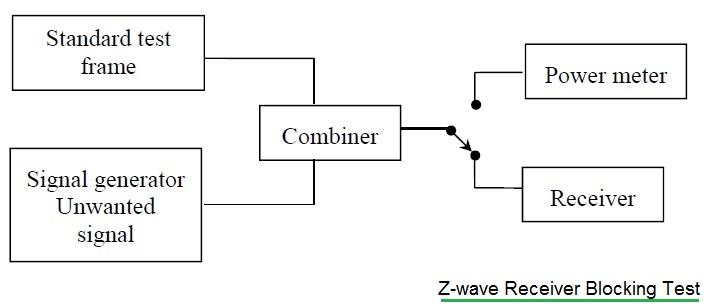

Z-wave receiver blocking test

Receiver Blocking test: Blocking is a measure of the capability of the receiver to receive a wanted modulated signal without exceeding a given degradation due to the presence of an unwanted input signal.


z-wave receiver blocking test

• Standard test frame is at the nominal frequency with normal modulation. Its power is adjusted down to the sensitivity level +3 dB.
• Unwanted signal is a CW (carrier wave) at a specific offset frequency. Its power is adjusted up until the receiver gets the FER (frame error rate) that correspond to the sensitivity level.


Frequency offset Receiver blocking limit
+/-1 MHz -44dBm
+/-2 MHz -34dBm
+/-5 MHz -27dBm
+/-10 MHz -25dBm

Maximum input level: A receiver shall function with maximum input level greater than or equal to 0 dBm (i.e. 1mW).

Tx-Rx turnaround time: It is measured from the trailing edge of the last transmitted symbol until the receiver is ready to begin the reception of the next PHY packet. The limit specified in the standard is about 1 ms.

Rx-Tx turnaround time: It is measured at the receiver from the trailing edge of the last symbol of a received packet until the transmitter is ready to begin transmission. The limit specified in the standard is about 1 ms.
