LoRa Channels list | Table of LoRa Frequency Channels

This page of RF Wireless World covers LoRa channels list. It mentions table containing operating LoRa frequency channels.


The LoRa Wireless tutorial covers following sub topics:
Main page LoRa tutorial   LoRa Frequency Bands   LoRa protocol stack   LoRa MAC layer   LoRaWAN classes   LoRa features   LoRa Transceiver module


There are different bands defined in USA, EU, China for LoRaWAN network. Refer LoRa Bands.

Following table-1 lists out LoRa frequency channels in 868 MHz Band. The band is from 863 to 870 MHz. It mentions channel number and its respective channel frequency. All the 8 channels are separated by 0.3 MHz with respect to the adjacent channels.

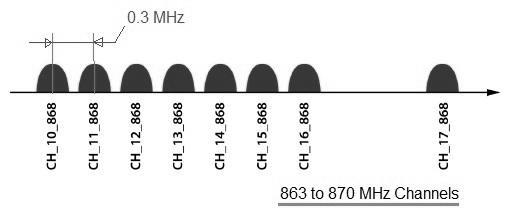

Lora channels 868 MHz Band
Channel Number LoRa Center Frequency
CH_10_868 865.20 MHz
CH_11_868 865.50 MHz
CH_12_868 865.80 MHz
CH_13_868 866.10 MHz
CH_14_868 866.40 MHz
CH_15_868 866.70 MHz
CH_16_868 867 MHz
CH_17_868 868 MHz

Following table-2 lists out LoRa channels in 900 MHz Band. The band is from 902 to 928 MHz. It mentions channel number and its respective channel frequency. All the 13 channels are separated by 2.16 MHz with respect to the adjacent channels.

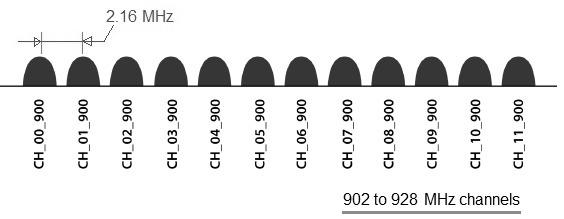

Lora channels 900 MHz Band
Channel Number LoRa Center Frequency
CH_00_900 903.08 MHz
CH_01_900 905.24 MHz
CH_02_900 907.40 MHz
CH_03_900 909.56 MHz
CH_04_900 911.72 MHz
CH_05_900 913.88 MHz
CH_06_900 916.04 MHz
CH_07_900 918.20 MHz
CH_08_900 920.36 MHz
CH_09_900 922.52 MHz
CH_10_900 924.68 MHz
CH_11_900 926.84 MHz
CH_12_900 915 MHz
