LTE UL SCH Physical layer processing


This tutorial section on LTE basics covers following sub topics:
Main page  features  terminologies  Frame  TDD FDD  Channel types  PHY  stack  throughput  VoLTE  CA   cell search  network entry  Timers  PSS vs SSS  Security   LTE Bands  EARFCN  Hotspot  router


This page describes LTE UL-SCH basic function and mention UL-SCH physical layer processing for transmitter part. The reference link to LTE physical layer is also provided.

The UL-SCH is used to transmit RRC signalling and application data. UCI can be added during physical layer processing before mapping on PUSCH physical channel. TBs belong to UL-SCH has variable size.

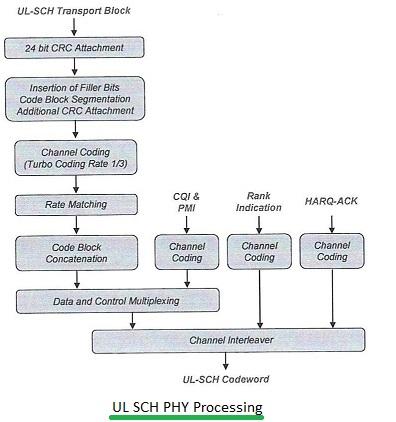

LTE UL SCH Physical layer processing

After the UL-SCH passes through the modules as shown in the figure, UL-SCH code word is produced. This code word is modulated and later used to generate SC-FDMA signal. UL-SCH codeword is transmitted during 1 ms subframe.

LTE UL-SCH Physical layer processing reference: 3GPP TS 36.212

LTE Physical Layer

Refer LTE Physical layer page for detailed description on eNodeB and UE physical layer transmitter compliant to LTE standard.
