WLAN 802.11ac MAC layer


This tutorial section on WLAN-11ac basics covers following sub topics:
Main page  frame  PHY layer  MAC layer  data rates  spectral mask  beamforming  radio planning


This page of WLAN 802.11ac tutorial covers 802.11ac MAC layer.

The 802.11ac MAC layer has similar frame format as earlier used in 802.11n but there are few changes as outlined below.

•  extension of maximum frame size to about 8K to 11K bytes.
•  Frame aggregation concept was added in 802.11n so that network efficiency can be increased. 11ac added new feature to this by allowing all frames to be transmitted should use A-MPDU format. Hence even though there is one frame that too needs to be transmitted in A-MPDU.
•  HT control field is kept same as 11n, when it begins with 0 it will be 11n frame, if it begins with 1 it will be VHT frame(i.e. 11ac frame).

Data payload for aggregated frames consists of following. MSDU contains IP layer information.
MPDU delimiter+MAC Header+MSDU1+ MPDU delimiter+MAC Header+MSDU2+ MPDU delimiter+MAC Header+MSDU3
Max. length of A-MPDU is controlled by A-MPDU length exponent.
Max. length of A-MPDU = 213+Exp -1 bytes
Exp can range from 0 to 7, this yields A-MPDU to be of length 8KB to about 1MB.

Following are some of the useful attributes of 11ac MAC layer.
•  MSDU size for MAC payload - 2304
•  MPDU size for MAC frame - 11,454
•  PSDU size(PLCP payload) - About 4MB
•  PPDU size(PLCP frame) - 5.484 ms

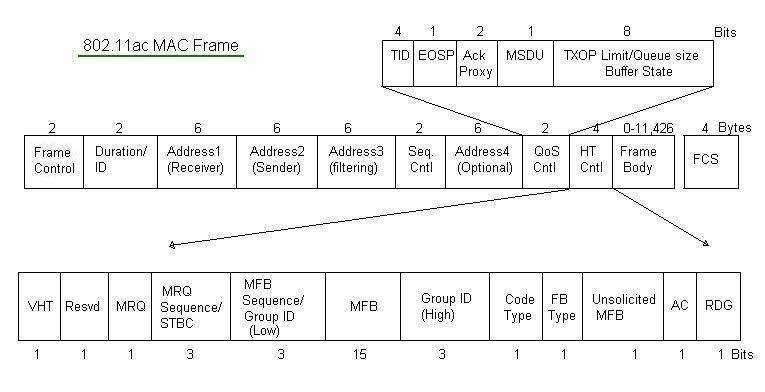

802.11ac MAC frame format

Management Frames

802.11ac has VHT capabilities Information Element(IE) , which is the format used in management frame required to establish connection in 802.11ac networks.

VHT capabilities IE fields = { Max. MPDU Length (2 bits),Supported Channel Width set(2 bits), Rx LDPC ( 1bit), Short GI for 80 MHz(1bit), short GI for 160 MHz(1bit),Tx STBC(1bit), Rx STBC(3bits), single user beamformer (1bit), beamformee (1bit), Sounding dimensions(3bits), multiuser beamformer(1bit) , beamformee(1bit), VHT TxOp power saving(1bit), VHT variant HT control(1bit), Max. A MPDU length exponent(3), VHT link adaptation capable(2), Rx and Tx antenna pattern consistency(1 each), Rx and Tx VHC MCS MAP(16 bits each), Rx and Tx Highest data rate supported (13 each) }

VHT operation Information Element in 802.11ac is used for operation of the 802.11 network. Basically it describes channel related information such as width, frequency and rates supported by the transmitter. Rates help in determining MCS and number of spatial streams.

VHT IE ={ Channel width (1byte), channel center frequency 0 (1byte) , channel center frequency 1(1byte) }

MAC features

A-MPDU for transmit and receive, Clear Channel Assessment (CCA) on secondary channels and bandwidth signalling in RTS/CTS are mandatory features in 802.11ac WLAN network. There are few optional features which include single user beamforming and multiuser beamforming and GCMP.
