Switch

This tutorial covers everything one like to know about networking basics including circuit switching vs packet switching, TCP/IP protocol fields, ARP/RARP protocol fields, what is IP address ,what is MAC address, networking devices which include hub, switch, bridge, router, gateway and firewall.

• Circuit Switching vs Packet switching
• LAN vs WAN vs MAN
• What is an IP address
• What is MAC Address
• Basics of OSI and TCP-IP Layers
• What is Hub
• What is Switch
• What is Bridge
• What is Router
• What is Gateway
• Firewall basics
• TCP-IP Packet format
• ARP Protocol format

Network switches are identical to network hubs, but a switch is more intelligent than hub. Network switch inspects the packet, determine source and destination address and route the packet accordingly. By way of forwarding the packet to the appropriate device switches conserve bandwidth significantly. Now-a-days network switches are available with 10/100/1000 Mbit/sec as well as 10/100 Gbit/s ports. It operates at layer 2 of OSI Stack. It is often recognised as multiport bridge.

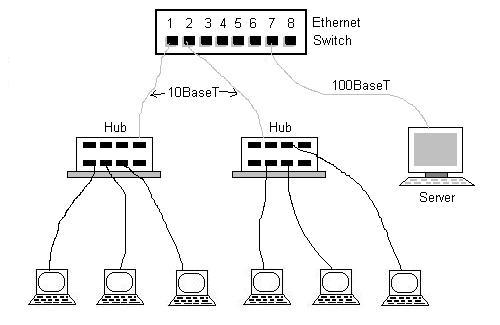

switch-hub

There are 4 methods layer 2 switch uses as mentioned below to forward the packet.
1. Store and Forward- In this method, it buffers and performs checksum on each frame before forwarding.
2. Cut through- In this method, no error check is performed. Switch reads up the frame's hardware address and forwards it.
3. Fragment Free- This method is combination of above two methods i.e. Store and Forward and Cut through. This method checks first 64 bytes in the frame which gives addressing information. This tells switch which is the destination of the frame. Error checking is performed by layer 3 and 4 typically router of the end device.
4. Adaptive switching- A method to automate switching between the other 3 modes.
