Transparent Repeater vs Regenerative Repeater | difference between Transparent Repeater and Regenerative Repeater

This page compares Transparent Repeater vs Regenerative Repeater and mentions difference between Transparent Repeater and Regenerative Repeater used in satellite.

Introduction:
The Satellite payload can be divided into two major parts viz. antennas and repeater. The repeater is categorized into Transparent Repeater and Regenerative Repeater.

Transparent Repeater

Transparent Repeater

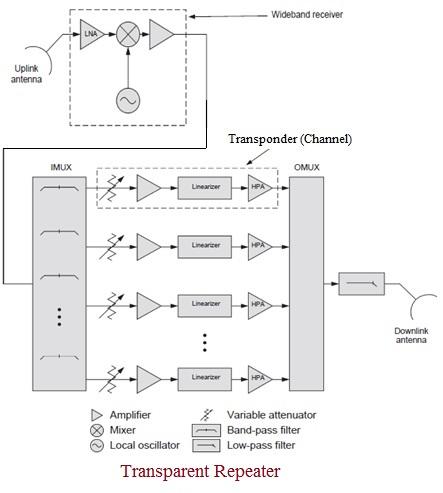

• The figure-1 depicts block diagram of a single frequency conversion transparent repeater.
• It is also known as bent pipe because it captures the signal from the earth and re-directs it back to the earth without demodulating it.
• Before retransmission however, the received uplink signal is frequency converted to the downlink frequency, amplified and filtered.
• Other operations may also be applied to the signal.

Regenerative Repeater

Regenerative Repeater

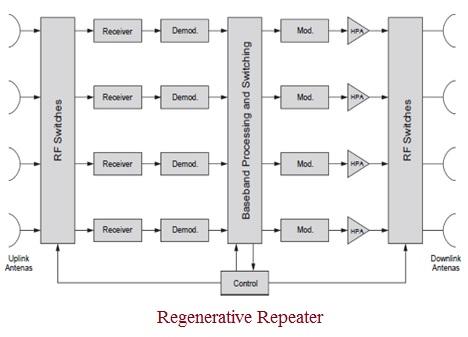

• The figure-2 depicts block diagram of Regenerative Repeater.
• A regenerative repeater is known as on-board processing repeater.
• It consists of one or more uplink antennas, downlink antennas, low-noise amplifiers (LNAs), frequency converters and high power amplifiers (PAs) like transparent repeater.
• It demodulates received uplink RF signal to recover the baseband signal and later re-modulates the baseband signal to produce the downlink RF signal unlike transparent repeater
• This allows onboard processing based on different applications and switching in the baseband.
• Isolation between the uplink and downlink signals is accomplished by re-modulation of the baseband signal at a different frequency rather than by frequency conversion.

Following are the major difference between Transparent Repeater and regenerative repeater.
➨Regenerative repeaters offer better performance compare to transparent repeaters. This is due to the fact that the degradation in the uplink signal is not re-transmitted back in the downlink signal.
➨Regenerative repeaters are less flexible compare to transparent repeaters as they can handle predetermined data formats. Transparent repeater does not bother the type of RF signal is being transported.
➨Regenerative repeaters are more complex and costly compare to Transparent Repeater.
➨Regenerative repeaters require more electrical power to operate compare to Transparent Repeater.
