MIPI CSI-2 vs MIPI CSI-3-Difference between MIPI CSI-2,CSI-3

This page compares MIPI CSI-2 vs MIPI CSI-3 mentions basic difference between MIPI CSI-2 and MIPI CSI-3.

MIPI CSI-2 V1.3

MIPI CSI-2

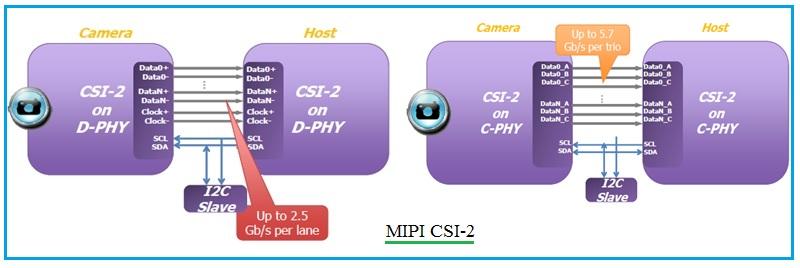

Figure-1 and figure-2 depicts MIPI CSI-2 variants D-PHY, C-PHY and Combo PHY. Following are the features of MIPI CSI-2 V1.3 :
• PHY variants supported: D-PHY 1.2, C-PHY 1.0 or "Combo PHY"
• Number of Virtual Channels: Four (4)
• Control Interface: I2C
• Line based transmission (Easy implementation, low gate count, matched data rates for sensor and link)

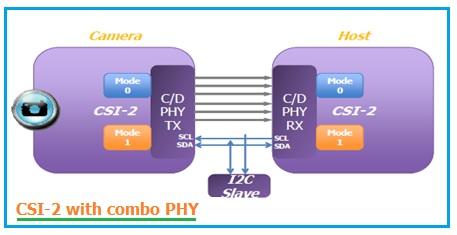

MIPI-CSI-2-Combo-PHY

• Interrupt type: In-Band
• Supports RGB, RAW, YUV, JPEG
• Embedded Data
• CRC/ECC for payload & Header Protection

MIPI CSI-3 V1.1

MIPI CSI-3

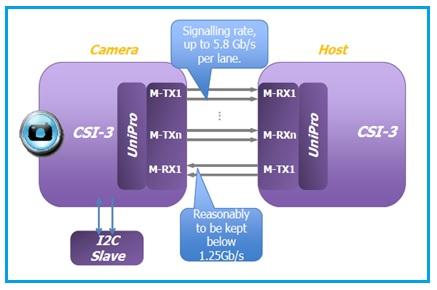

Figure-3 depicts MIPI CSI-3 interface. Following are the features of MIPI CSI-3 V1.1 :
• M-PHY 3.0
• Virtual Channels: 32
• In-Band Control
• Packet Based Transmission
• In-Band Interrupts
• Supports RGB, RAW, YUV, JPEG
• Embedded Data
• Notification channels for metadata, audio etc.
• CCI bridging
• Guaranteed delivery of data
