GFSK vs FSK

This page covers comparison between GFSK and FSK modulation techniques with respect to various system parameters. Following are difference between GFSK and FSK modulation types.

FSK

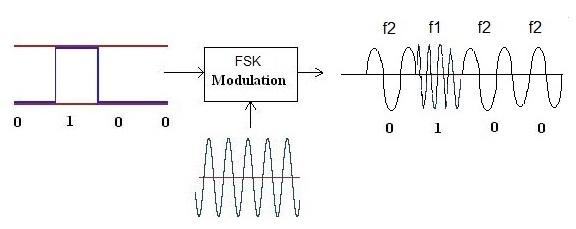

FSK modulation

FSK stands for Frequency Shift Keying. FSK modulation technique is used to modulate binary string of 1's and 0's suitable for transmission using RF carrier frequency from one end to the other end.

Example of simple FSK scheme is Binary FSK. In BFSK, binary information of 1 and 0 is represented by change of frequency e.g. binary 1 is represented by frequency f1 and binary 0 is represented by frequency f2. Refer what is modulation page for types of modulation viz. analog and digital. The basic digital modulation types include ASK,FSK and PSK.

FSK modulation spectral width is unlimited. In FSK, fc will jump sharp to fd. This decreases spectral efficiency to a great extent. Continuous phase FSK modulation having index of 0.5 is referred as MSK modulation.
Refer 2FSK vs 4FSK modulation types >>.

GFSK

GFSK stands for Gaussin Frequency Shift Keying modulation. In GFSK, baseband pulses (consists of -1 and 1) are first passed through the gaussian filter before modulation. This makes pulses smooth and hence limit the modulated spectrum width. This process is known as pulse shaping.

In GFSK, spectral width is limited due to filter. Here fc climbs slowly and will attain value equal to fd. Bluetooth radio chip employs the GFSK modulation type.
Also refer GMSK modulation.
