Difference between Counter, Flash, SAR & Dual Slope ADC Types : Key Advantages & disadvantages

Introduction : Analog to Digital Converters (ADCs) are crucial in converting real world analog signals into digital form for processing in embedded and electronic systems. Among various ADC architectures, Counter type, Flash, Successive Approximation Register (SAR) and Dual Slope ADCs are widely used, each with its own operating principle, speed, accuracy, and complexity. Understanding the differences among these ADC types helps in selecting the right converter for applications in communication systems, measurement instruments and digital electronics. We’ll also discuss the advantages and disadvantages of each.

There are total three steps required for A to D conversion viz. sampling, quantization and coding. Example: A cell phone converts analog voice into digital data, processes it and re-converts the same into analog form for retransmission into the air using EM (electro-magnetic) wave.

1. Counter Type ADC

counter type ADC

Figure 1: Counter Type ADC

Figure 1 depicts a block diagram of a counter type ADC. It utilizes a counter and a DAC (Digital-to-Analog Converter). The ADC compares the DAC output with the analog input voltage and continues this process until both are equal in magnitude. At this point, the counter stops.

The maximum conversion time is equal to (2^n - 1) * T_CLK for an n-bit ADC. Notably, the conversion time depends on the analog input voltage.

2. Parallel Comparator (Flash) ADC

flash type ADC

Figure 2: Flash Type ADC

Figure 2 illustrates a block diagram of a parallel comparator ADC, also known as a 2-bit flash ADC. This is the fastest ADC type.

For an n-bit flash ADC, (2^n - 1) comparators and 2^n registers are required. Each comparator compares Vin to a different reference voltage, starting with Vref = 1/2 (LSB - Least Significant Bit). Op-amps are typically used as comparators here.

Advantages:

  • Very fast.

Disadvantages:

  • Requires a large number of components (e.g., 255 comparators for an 8-bit ADC).
  • Lower resolution.
  • Expensive.
  • High power consumption.

3. SAR (Successive Approximation Register) Type ADC

SAR type ADC

Figure 3: SAR Type ADC

Figure 3 depicts a block diagram of a SAR type ADC. SAR stands for Successive Approximation Register.

SAR type ADCs are commonly used in digital circuits to interface with microprocessors. The conversion time in a SAR ADC is uniform for any analog voltage and is equal to n * T_CLK.

Advantages:

  • Capable of high speed.
  • Offers medium accuracy compared to other ADC types.

Disadvantages:

  • High-resolution SAR ADCs can be slower.
  • Speed is limited to approximately 5 MBPS.

4. Sigma Delta ADC

Sigma Delta ADC

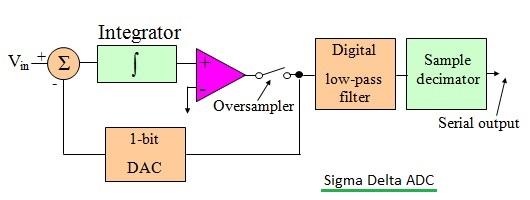

Figure 4: Sigma Delta ADC

Figure 4 shows the block diagram of a Sigma Delta ADC. The Serial Output is proportional to the analog input voltage.

Advantages:

  • High resolution.
  • Does not require any external components.

Disadvantages:

  • Slow in conversion due to oversampling.

5. Dual Slope Integrating Type ADC

Dual Slope Integrating type ADC

Figure 5: Dual Slope Integrating Type ADC

Figure 5 illustrates a block diagram of a Dual Slope Integrating type ADC. These ADCs are often used in the design of digital voltmeters.

For an n-bit dual slope ADC, Vr = (2^n / N) * Va

The total time for conversion of input Va is expressed as: Total Time = (2^n + N) * T_CLK

Advantages:

  • More accurate compared to other ADC types.
  • Greater noise immunity.

Disadvantages:

  • Slowest ADC type.
  • Requires high-precision external components to achieve better accuracy.

Conclusion : Each ADC type has its own benefits and limitations : Flash ADCs offer the fastest conversion but require more hardware; SAR ADCs provide a balanced solution between speed and accuracy; Counter ADCs are simple but slower; and Dual Slope ADCs excel in accuracy and noise rejection but are relatively slow. Choosing the right ADC depends on application requirements such as speed, resolution, cost and power consumption. A clear understanding of these differences enables optimal design choices in analog to digital conversion tasks.
